Products Description
MC18S Large Format UV Roll to roll Printer
This high cost-effective type 1.6m/1.8m UV printer is equipped with Epson DX11/DX5 print head,summed up by Hongcai manufacturer in the past research and development and manufacturing experience of large format printers.The market feedback on accuracy, color and stability is very good. The after-sales maintenance cost is low and the quality assurance time is long. It is the best-selling model at present. This type UV Roll printer can be equipped with one or two heads for different
Usages: For single head printer: C/M/Y/K
For double head printer:CMYK+W
Product Paramenters | Model | M18S | ||||
| Print Head | Epson XP600/DX5/4720 * 1 | Epson XP600/DX5/4720 * 2 | |||
| Print resolution | Max 1440dpi (4720: 3200 dpi) | Max 1440dpi (4720: 3200 dpi) | |||
| Feeding Width | 1900mm | 1900mm | |||
| Print Width | 1850mm | 1850mm | |||
| Print Speed | 4 Pass | 15.9 m²/h | 35 m²/h | ||
| 6 Pass | 12.3 m²/h | 28 m²/h | |||
| Ink | Ink Type | UV Ink | |||
| Color | CMYK + W 5 colors | ||||
| Tank volume | 1500ml tank for each color | ||||
| Supply type | Negative Pressure CISS continuous ink supply | ||||
| Print Media | UV ink | wallpaper, light box, vinyl, backlit film, photo paper, movable PP self-adhesive vinyl, etc. | |||
| Drying System | Infrared Heating System with fans | ||||
| Media Loading & Take up | Standard | ||||
| Cleaning System | Automatic cleaning | ||||
| Data Transmission | 1000M Network port | ||||
| RIP Software | Maintop, Photoprint / ONYX (optional) | ||||
| Power Supply | AC220V ± 10%, 50Hz/60HZ | ||||
| Power | Stanby: 32W, Max: 2300W | ||||
| Operation Environment | temperature 15° C-30° C relative humidity 40-60% RH | ||||
| Package Size and Weight | 2776*766*665mm / 240kg±5% | 2776*766*665mm / 250kg±5% | |||

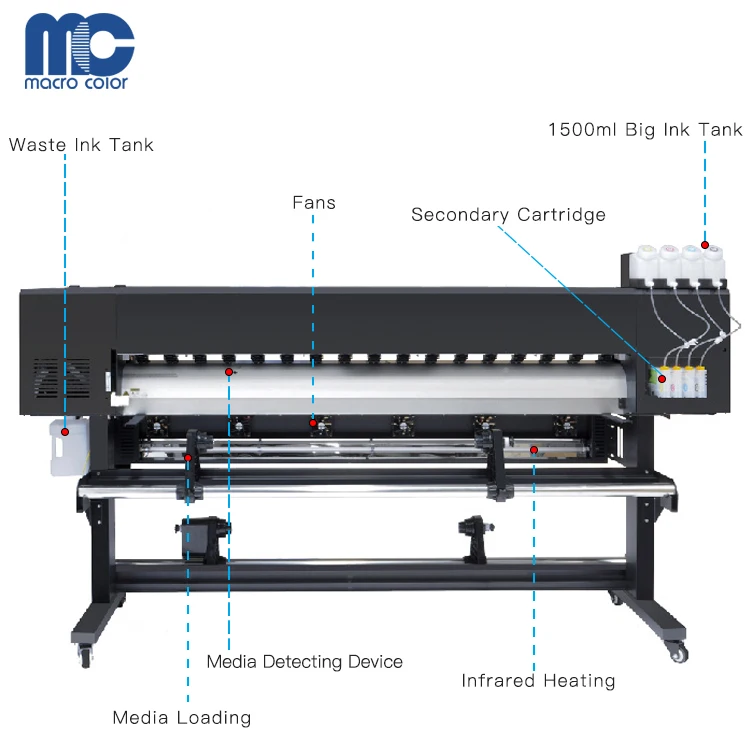

Details Images Main Edge Features
(1) Printer platform is true 3 phase, 99% of the market models don’t have middle phase heating, which is crucial for colors and resolution as middle heating has high requirements for themetal. (2) Front infrared heating system, and temperature adjustable
(3) Higher speed platform originates from classic Locor Easyjet model
(4) Strike and seal type cap station for single head, and lift up type cap station for doubleheads, very easy for maintenance.
(5) Material detect system, once material run out, printer will stop printing automatically
(6) LED light for better effect checking when printing
(7) Secondary ink stank for stable ink supply for fast printing.
(8) Heavy duty and durable printer body.
(9) Auto and double power motor feeding and Take-up roll to roll system.
(10) Free Rip software Maintop 5.3.
Application
Company Profile
Our Warranty and Advantages Our Advantage(1) R&D CenterProfessional & experienced professors, engineers and designers team dedicated to our printer mechanical design, color performance and durance etc. research and development for best using experience of our printers
(2) Production Line
Presently we have 4 main printer factories production line in China mainland to meet our dealers&end users quantity demands.Zhengzhou factory is our headquarter and administative center. OEM/ODM service available based on mutual agreements.
Warranty And After-sales Service
(1) 1 Year Warranty for printer, not include print head, damper, cable and cap, as they are consumables. the express fee is not including.
(2) 3 Years Warranty for boards.
(3) whole life online after sales service, professional engineers team for online technical support and solution.
(4) More than 17 years rich printer experience
(5) Onsite engineer service available, but round air tickets and accommodation cost shall be based on mutual agreement
Recommend Products
FAQ Warmly welcome all partners to join us for mutual benefits cooperation.
(1)Can I get a free sample for a testing? Sure, you can send us the material you want to print, we will test it for you and take photos and videos for your reference, if you want to see it, just pay the shipping cost is ok.
(2) What's your delivery time?
We will arrange the shipment within 3~10 working days after received the deposit. And we keep some models in stock all year round.
(3) What payment method are supported?
Payment method is T/T ,D/P, Western Union, Credit Card, etc.
(4) If I have some technical problem, how can you help us to solve it?
Detailed description, photos or video will help our technician analyze the problem and give solution accordingly.
(5) Once there is something need to replace, what can I do?
We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back the broken ones. We suggest that users order spare parts package for long time maintenance and fast replacement.
(6) Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for anytime.
