Note: The quotation is a prepaid deposit, and different nozzles can be customized according to customer needs, please contact the salesperson for details. Product Description
Specification
| Printhead | EPS4720/i3200/XP600 | ||
| Number of print head | 1/2 | ||
| Printer size | 900*480*510mm | ||
| Maximum printing width | A3/330mm | ||
| Printer weight | 60kg | ||
| Outer packing size | 960*630*620mm | ||
| Printing software | Maitop 6.1/photoprint | ||
| language | Chinese/English | ||
| Print speed | 4720 | 4Pass:10m2/h,6Pass:6m2/h,8Pass:4m2/h | |
| i3200 | 4Pass:10m2/h,6Pass:6m2/h,8Pass:4m2/h | ||
| XP600 | 6Pass:4.5m2/h,8Pass:3.5m2/h | ||
| Printing accuracy | 360*2400dpi,360*3600dpi,720*2400dpi (6Passs,8Pass) | ||
| Environmental conditions | Temperature:20-28℃/Relative Humidity: 65%-75% | ||
| Ink type and configuration | Textile Pigment ink FY/FM/FB/FR/FG/C/M/Y/K/W | ||
| Working Power supply | 220V/110V 50HZ/60HZ | ||
| The Ironing temperature | 160-170℃ Cold /hot to tear | ||
| Power | Printer:350w Powder dryer:2400W | ||
| Three heating sections | Pre-heater, printing bed heater, rear heater 30℃-65℃ | ||
| Powder shaker name | A3 shaking powder drying machine | ||
| Retractable media width | 330MM | ||
| Applicable media | Cloth, nylon, chemical fiber, face cloth, leather, swimsuit, PVC, EVA, etc. | ||
| functional item | Powder shaking control, dusting control, curing temperature PID setting | ||
| Heating and drying function | Far infrared carbon fiber heating tube heating | ||
| Rewind function | Automatic induction winding | ||
| Electrical parameters | Rated voltage 220V, 110V, rated current 5A, rated power 800W | ||
| Dimensions and Weight | XP600: Shake powder machine Packing size: 780*610*710mm, 45KG i3200: powder shaker Package size: 890*740*580mm, 50KG | ||

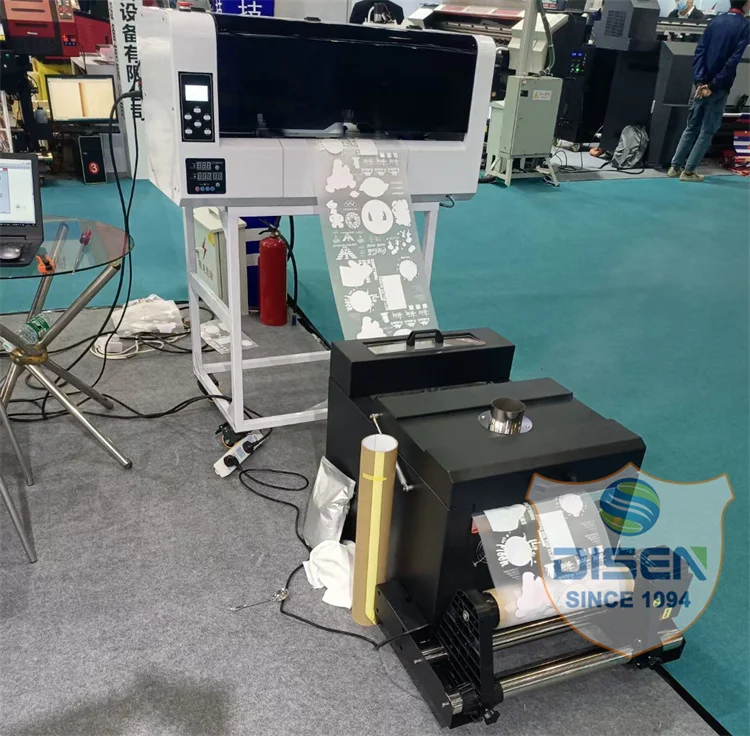

Effect Display Disen DTF Printer Printing Effect

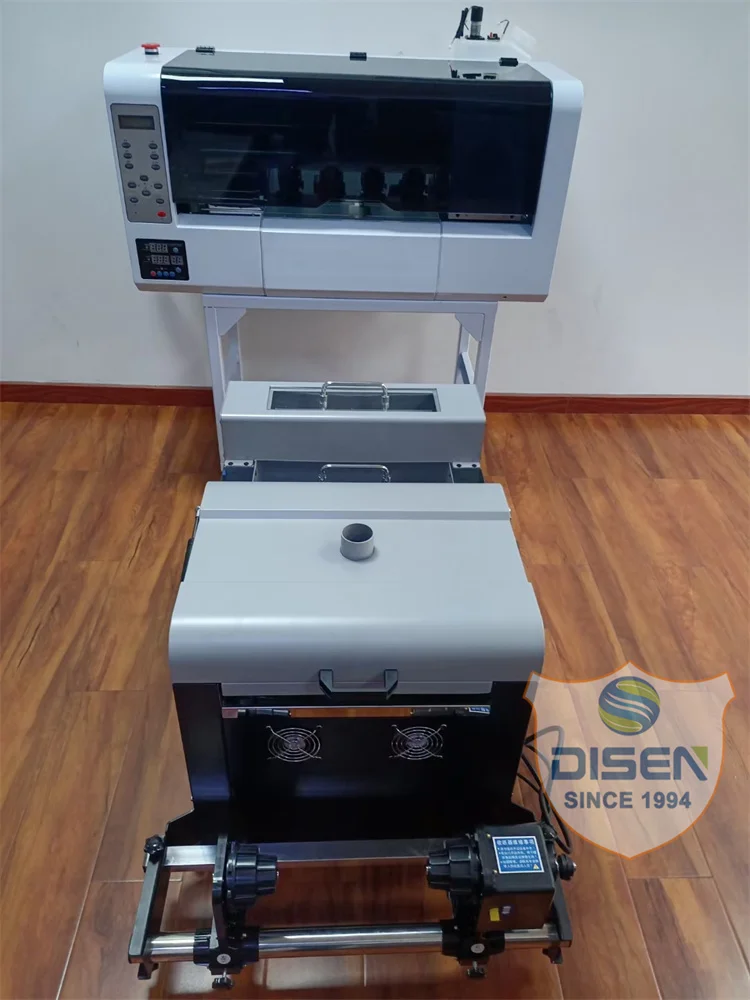

All-in-one machine for heat transfer and powder shaking： 1,Convenient, high efficiency and low cost: One-stop hollow printing, no cutting plotter, laminating machine, hollow machine,no waste discharge, time and labor saving. 2,Good effect: the pattern is soft to the touch,washable and stretchable, and the wet and dry fastness reaches level 4. 3,A wide range of applicable materials:printable materials include cotton fabrics, high-elastic fabrics, nylon fabrics,chemical fiber fabrics,swimwear,denim,PVC,EVA,etc.
Any fabric textile cloth material, any color, any part printing. Best solution for print on demand, custom garment printing.
