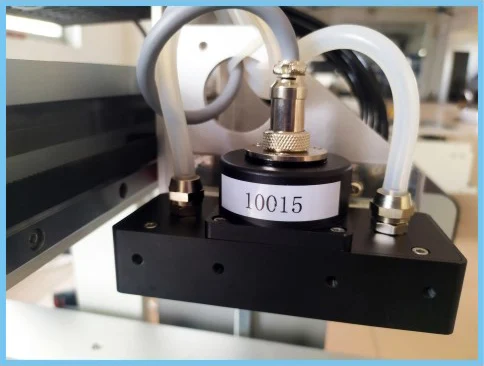

Negative pressure ink supply system
The ink supply changes smoothly, and the ink supply is more smooth, ensuring the stability of the ink supply during high-speed continuous printing.
Water-cooled LED-UV lamp curing
High power, long life; cold light source, adjustable power, make the curing effect more outstanding.

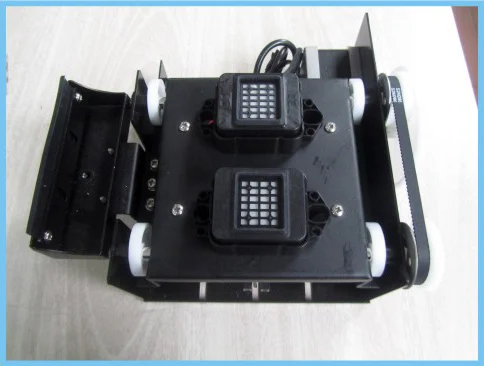

Double-head lifting ink stack
With the small frame, the alignment with the print head is more accurate, ink absorption, high cleaning efficiency, guarantee the life of the print head, and make the printing effect more refined.

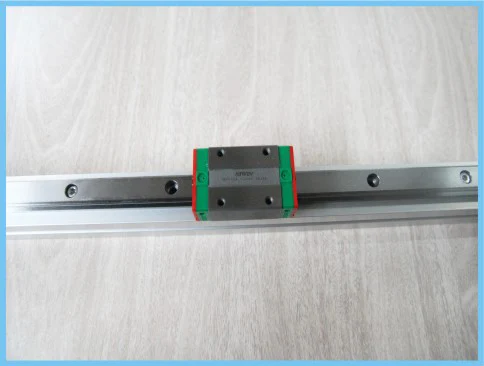

Shangyin Silent Slider Rail
It greatly reduces the noise generated by the equipment during high-speed operation, greatly improves the accuracy of ink application, and ensures precise positioning.

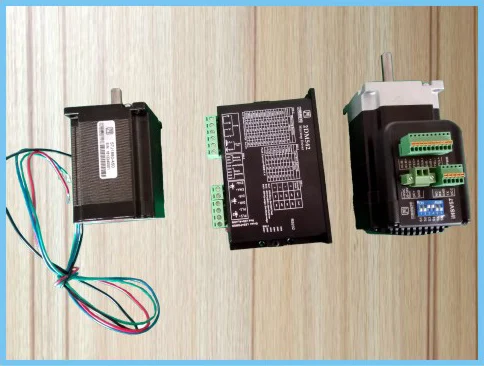

Servo motor
The high-grade servo motor provides optimal control of the movement of the X-axis and Y-axis to ensure the accuracy of mechanical rotation and durability.

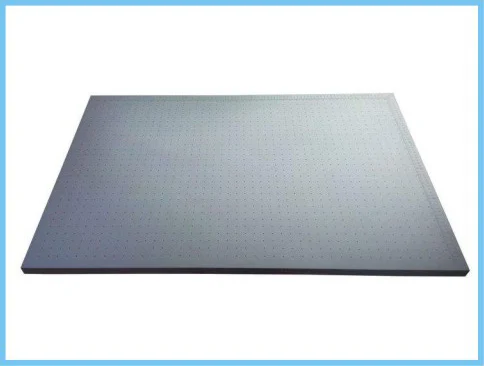

Adsorption platform
Product Paramenters
Model | DSA-MZ6090 2H | DSA-MZ6090 3H | |
Print head | EPSON XP600 2pcs | EPSON XP600 3pcs | |
Print type | White ink color ink double head UV printer | White ink color ink varnish three-head UV printer | |
Printing Size | 600mmX900mm | ||
RIP Software | Maintop/Photoprint | ||
Ink Color | C M Y K Lc Lm W1 W2 | C M Y K Lc Lm W1 V1 | |
Max ResoIution | 720X1440DPI | ||
Printing Thickness | Omm-150mm | ||
Printing Speed | 6Pass 4m2/8Pass 3m2/2Pass 2m2 | ||
Power | 550W | 650W | |
VoItage | 110V-220V | ||
Operating Environment | 10-35℃, 20-80RH | ||
Ink Type | UV Ink | ||
Operating System | Win7/Wi n8/Win10(64bit) | ||
Image Format | JPG/TIFF/PDF | ||
Dimension | 1550mmX1410mmX580mm | 1550mmX1680mmX660mm | |
Package size | 1640mmX1545mmX795mm | 1840mmX1700mmX840mm | |
Printing MateriaI | Glass,Plastic,AcryIic,MetaI,Wood, etc | ||
Weight | 220KG | 240KG | |
Sub-regional adsorption, so that the entire platform suction uniformly, the surface of the platform has high hardness and corrosion resistance.

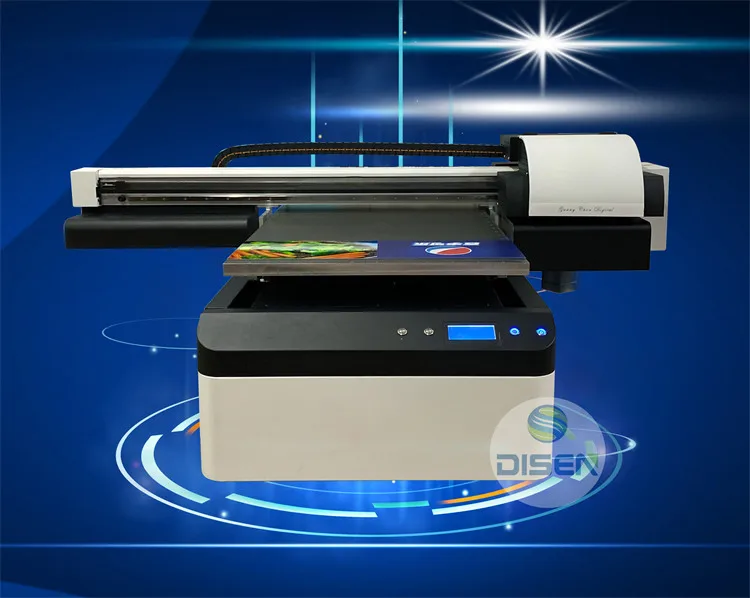

Product Description
Effect Display
Common materials wholesale

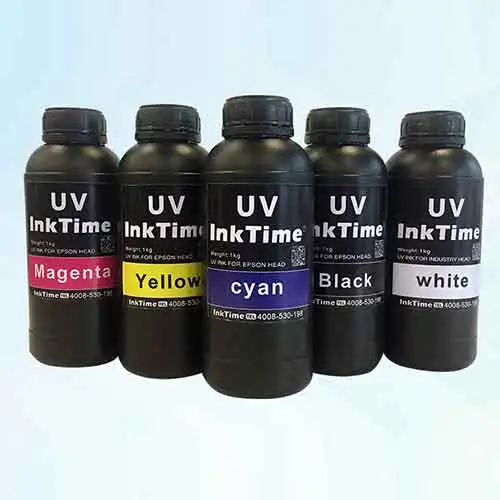

UV ink wholesale
Nozzle cleaning agent to ensure the normal operation of the nozzle
T-shirts are wholesaled in large quantities, a variety of colors and materials are available
Various types of original nozzles, ex-factory prices
Company Profile
FAQ
Why choose us?
Our company was founded in 1994,committed to supplying our customer top quality and dedication to the constant improvements of quality, reliability, productivity and the competitiveness of our products and services.
Can you give us discount if we make big order?
As a factory, we will provide offer with MOQ. If the quantity less than MOQ, we will add inland freight. If the quantity more than MOQ, we can negotiable the price.
Can I make a OEM order?
We can supply different sizes.our products can be customized with LOGO, PACKAGE, COLOR, etc.
