Product Paramenters

A3 UV & DTG Printer Specifications:
Product NameProduct NameA3 UV & DTG Printer
Print head ModelPrint head ModelEPSON L1800 / R1390
Print head NumberPrint head NumberOne
Nozzle NumberNozzle Number90*6
Print ResolutionPrint Resolution2880*1440dpi / 1440*1440dpi / 1440*720dpi
Printhead to object heightPrinthead to object height≤3mm
Prinhead CleaningPrinhead CleaningACRORIP9.03 Automatically cleaning
Print Speed
Different ModesQuick mode2 minutes full page (White+Color)
Normal mode4 minutes full page (White+Color)
High quality mode8 minutes full page (White+Color)
Color mode
UV ink quick dry modeCMYK+WW
Other modesCMYK+LmLc
Ink system
inkUV inkC/M/Y/K/W (Using UV ink by default)
Textile inkC/M/Y/K or C/M/Y/K/W
inkEco solvent inkC/M/Y/K/Lm/Lc
Water based inkC/M/Y/K/Lm/Lc
Working area
Maximum supportPrinting area32*45cm
Width of material≤21cm
Length of material≤35cm
Height of flat objects≤8cm
Maximum diameter of cylindrical objectnot support
Print itemsAll flat objects
Printing software
Printing methodWhite + color printing at the same time, either white alone, or color alone
PC SystemWindows XP/7/8/10
Data transmission methodUSB cable
Operation method
Platform stepping methodOne-key automatic control
Platform adjustment method
Knob adjustment table
Net weight38KG
Gross weight55KG
Cooling systemAutomatic circulating water cooling and fan cooling
Machine size80*64*41cm (L*W*H)
Packing size90*72*48cm (L*W*H)
Operating environmentTemperature: 18-25℃,Humidity:35-65% RH
Power supplyAC100V-240V 50-60Hz

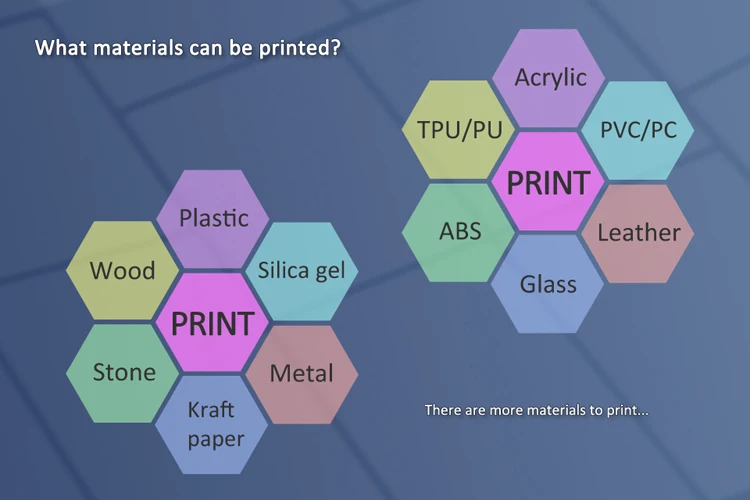

What materials can she print?
Printing materialPlastic, silicone, TPU, PV, PVC, ABS, leather, kraft paper, acrylic, metal, wood, stone, ceramics, etc., flat objectsand cylindrical objects.
Print itemsYou can also print patterns directly on mobile phone cases, cards, work cards, USB flash drives, gift boxes, cosmetic boxes,cartons, and more.
Application industryUV printers are widely used in processing plants, private business owners, advertising companies, manufacturing, gift industry, clothing industry, mobile phone accessories industry and many other industries.
Packing List
11 USB memory stick (including user manual, use video, driver, printing software)
2 1 ACRORIP9.03 key, 1 power cord, 1 USB cable, 2 syringe
31 set UV ink. (CMYKW, total:1250ml)
Products Description

  • A3 UV & DTG PRINTER(A3-6)

  • Product performance description

Feature 1: This model is very suitable for beginnersFeature 2: Print all flat objects.Feature 3: Use the latest L1800/R1390 Print head
Details Images A3 UV & DTG PRINTER(A3-6) New version buttonWorking trackWater cooling circulation system Certifications Packing&Shipping

Packing method: We use carton or wooden box packaging.

FAQ Q: How about your warranty?A: 1. We provide one year warranty since the shipping Non-human damaged parts.2. We have completely English instruction video and manual for you. 3. We provide online technician service 4. We provide lifetime free technical service to machine
Q: What type ink for this machine. A: UV ink / textile ink / eco-solvent ink / Water-based ink
Q: Will you provide ink?A: Our price doesn't including ink. You need to purchase ink separately, You can buy ink in our shop.
Q: Do you accept distributors? A: Yes, we accept distributors from all over the world to purchase our UV printers. Our quality is reliable and the price is stable. Please contact us to discuss specific matters.
