Product Description
Ntek YC3321R UV hybrid printers multicolor 3d industrial digital printers
Appearance
Simple Beauty,exquisite craftmanship
Printhead
Ricoh Gen5 Printheads 2-8 units
Application
Wide range of Applications to meet a variety of needs
Image Quality
Bright Picture fresh as before
Title goes here.

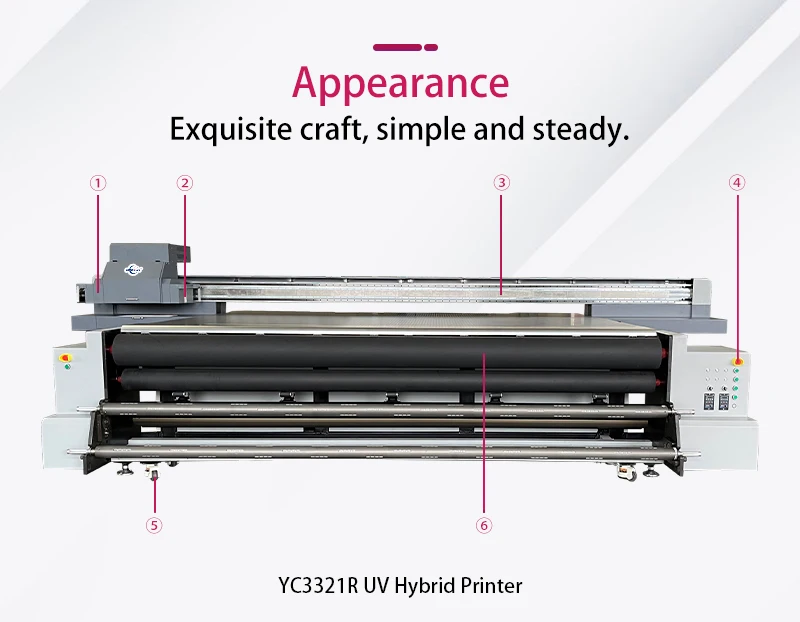

①UV LED lamp ② Anti-static& Anti-crash system ③ Taiwan HIWIN linear motor ④ Switch area ⑤ Universal wheel ⑥ Top heavy rubber roller
Specification
Product Mode | YC3321R | |
Printhead Type | RICOH GEN5/GEN6/KM1024I/SPT1024GS | |
Printhead Number | 3-8 heads | |
Ink Characteristics | UV Curing Ink (VOC Free) | |
Ink reservoirs | Refillable on the fly while printing 2500ml per color | |
LED UV Lamp | more than 30000-hours life made in Korea | |
Printhead arrangement | CMYK LC LM W V Optional | |
Printhead Cleaning System | Automatic Cleaning System | |
Guide rail | TAIWAN HIWIN/THK Optional | |
Working Table | Vacuum Sucking | |
Printing Size | 3300*2100mm | |
Roller Material Width | 3300mm | |
Roller Material Diameter | 200mm | |
Print Interface | USB2.0 | |
Media Thickness | 0-100mm | |
Print Speed | 10-15sqm/hour | |
Life of printed image | 3 years(outdoor),10years(indoor) | |
File Format | TIFF,JPEG,Postscript,EPS,PDF etc. | |
RIP Software | Photoprint Ntek Edition | |
Power Supply | 220V 50/60Hz(10%) | |
Power | 8500W | |
Operation Environment | Temperature 20 to 30 ℃,Humidity 40% to 60% | |
Machine Dimension | 5.37*3.78*1.46m | |
Packing Dimension | 5.55*2.25*1.67m 4.3*0.85*1.22m | |
Weight | 3000kg | |
Warranty | 12 months exclude the consumables related to ink, such as ink filter, damper etc | |
Above specification subject to change without notice before hand | ||

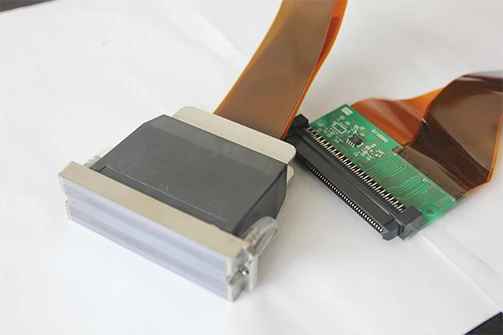

Ricoh Gen5/Gen6
Adopting gray level RICOH stainless steel internal heating industry head which has high performance in speed and resolution. it is suitable for long-time working, 24 hours
German Igus Energy Chain
German Igus Mute Drag ChainUtilize. Germany Igus mute drag chain on X axis, ideal for protection of cable and tube under high speed motion. With high performance, low noise, make the working environment more comfortable.Vacuum Adsorption Platform
Hard oxidized honeycomb hole sectionalized adsorption platform, strong adsorption capacity, low motor consumption, cutomers can adjust the adsorption area according to the size of the printing mateirial, the platform surface hardness is high, scratch resistance, corrosion resistance High Precision Mute Liner Guide Rail
Adopting HIWIN mute double linear guide rail which is high resolution, low noise and durable, to ensure the carriage moving smoothly, ink eject more stable. High Precision Aluminum Beam

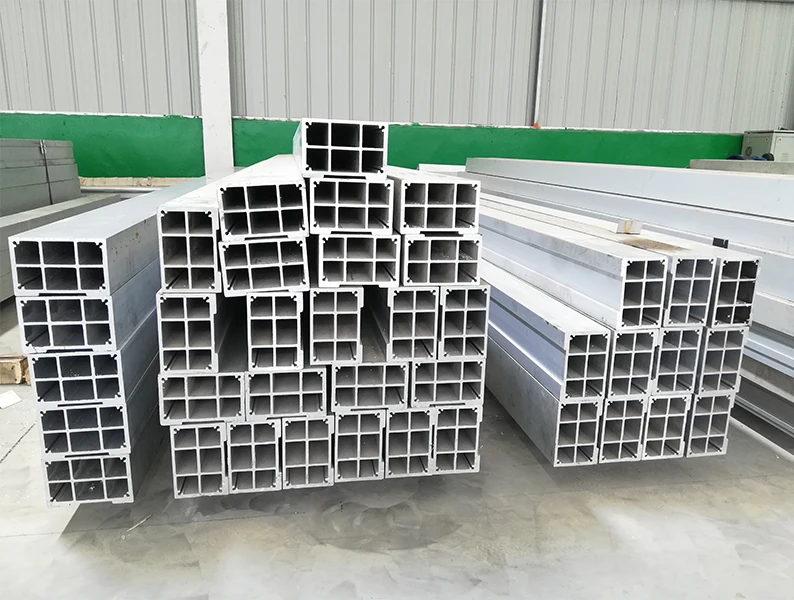

Equipped with Self-researched cold drawn and high-strength aluminum beam, applied ultra strength aerial aluminum materials, it ensure printing precision and stability, guarantee the perfect output.Panasonic Servo Motors and drives
Using panasonic servo motor and driver, effectively overcome the step loss problem of step motor. High speed printing performance is good, low speed runing is stable, dynamic response is timely, running stable.Secondary Cartridge
Printhead Anti-collision system

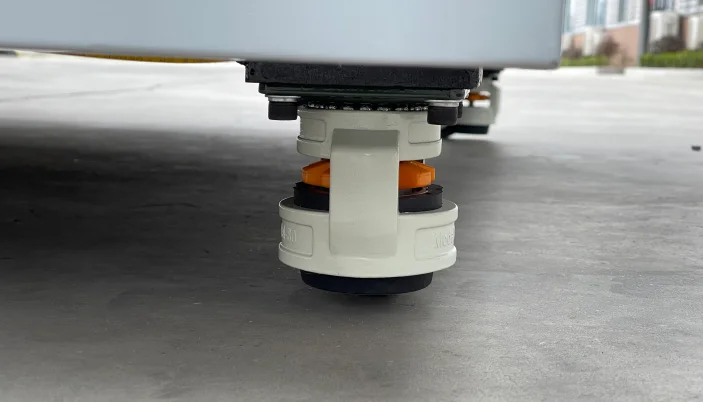

Universal Wheel
Anti-static system
Temperature control system
Lead screw bar for Y axis
Automatic Origin Positioning
Korea UV LED Lamp
All steel frame structure

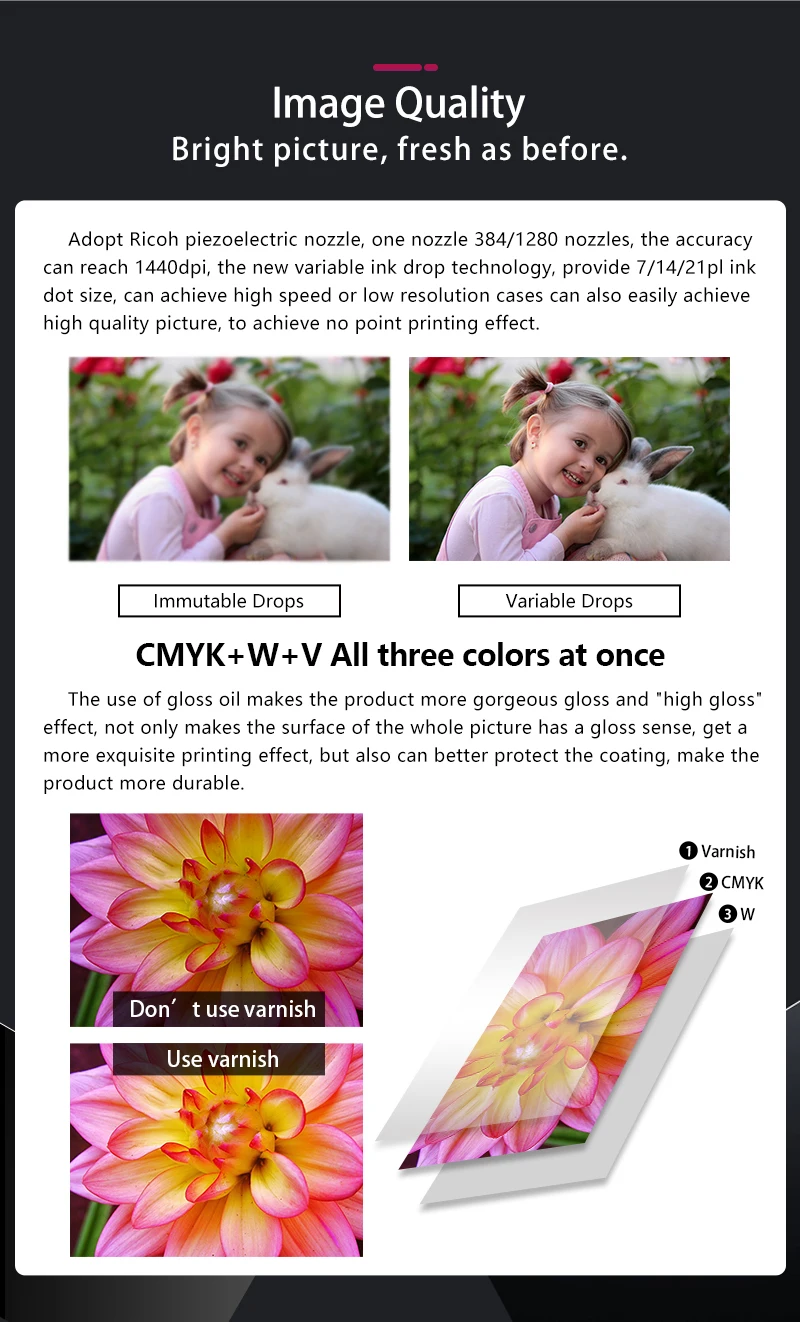

Image Quality
Bright Picture, Fresh as before.

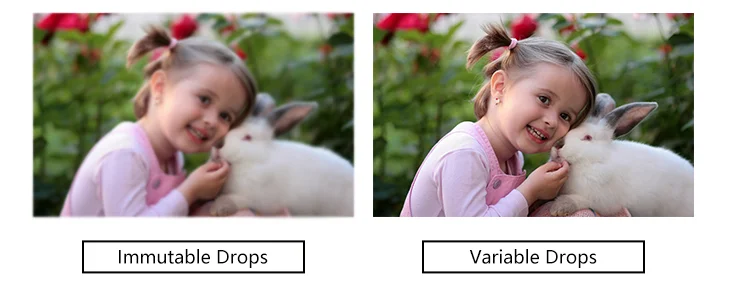

Adopt Ricoh Piezoelectric nozzle, one nozzle 384/1280nozzles, the accuracy can reach 1440dpi, the new variable ink drop technology, provide 7/14/21 pl dot size, can achieve high speed or low resolution cases can also easily achieve high quality picture, to achieve no point printing effect

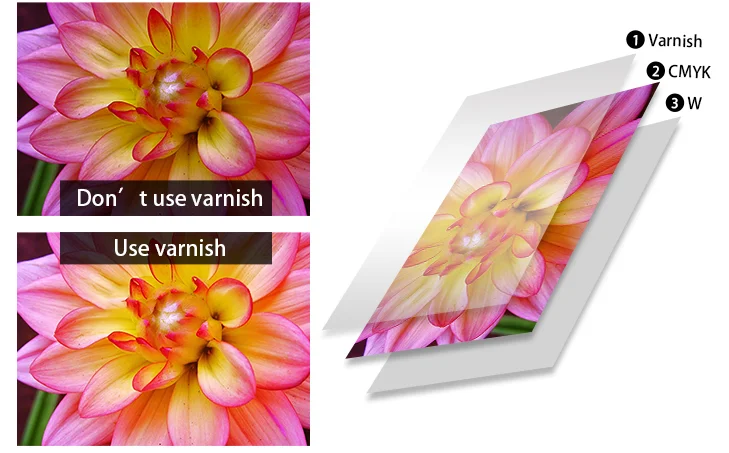

CMYK+W+V All colors at once
The use of gloss oil makes the product more gorgeous gloss and "high gloss" effect, not only makes the surface of the whole picture has a gloss sense, get a more exquisite printing effect, but also can better protect the coating, make the product more durable.
Ceramic
Mouse Pad
Canvas
Decoration Painting
Wood
Phone case
Plastic
Crystal porcelain paintings
Lamp-box Fabric

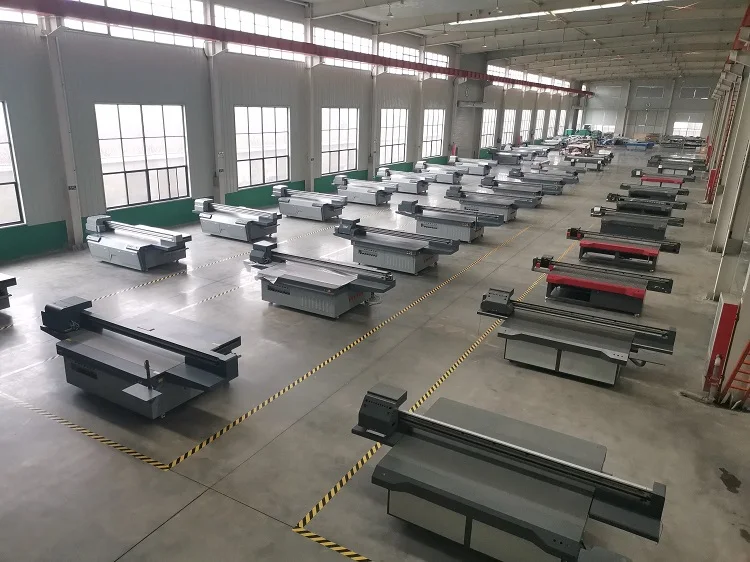

Company Profile
Linyi Win-Win Machinery Co,. Ltd.is founded in 2009 in Shandong China. The Enterprise is a high-tech machinery manufacturer, integrated with the R&D, production,sales, and maintenance in a whole. We mainly manufacture UV flatbed printers,UV flatbed with roll to roll, UV hybrid printer, all products are with CE certificate.Ntek is the pride of Chinese national industry, It has become one of Chinese top 20 enterpises for producing UV printer in China. we are one professional manufacturer of UV printing machine in China. Our flatbed printing machines are with high resolution, high technology and competitive price, and our machines have won widespread praised and recognition by our customers all over the world.We are one leading manufacturer, supplier and exporter of UV printing machine in China, we only produce UV printer. So compare to other factories, we are more professional. we supply to decoration industry, advertising industry, signage industry, glass industry, acrylic industry, wood industry, ceramic industry, ect…We endeavor to serve the needs of our customers and agents, by continually developing innovative technologies, we strive to create products and service to improve people's life. Welcome for business negotiation.
Aftersale service
One Year Warranty
Imported parts, warranty for one year.
Free Replacement
Within the warranty period, free replacement of damaged parts caused by quality problems.
Intimate After-sales
At least three times a year after sale return visit, keep track of the machines use.
Packing & Delivery
FAQ
1. How long does the printing images will last outdoor and indoor?The printing images can last at least 3 years outdoors, and more than 10 years indoor.
2. How about the stability and quality of the printing images?This UV flatbed printer can USED to print on most of the medias with best quality, durability, best result.
3. How about the maintenance and aftersale service?Our Engineer available service overseas, and we can provide remote control service and online service for customers.But the Customers has to be responsible for the accommodation and transportation costs of the technical staff.
4. Are you a manufacture or trade agent?We are the manufacture of UV flatbed printers.
5. Is there any gurantee for this printers?Yes, we provide one year warranty for all the electronic parts including the main board, driver board, control board, motor, ect. But there is no wanrranty for wearing parts like ink pump, printhead, ink filter, and slide block since they are consumables.
