Product Description

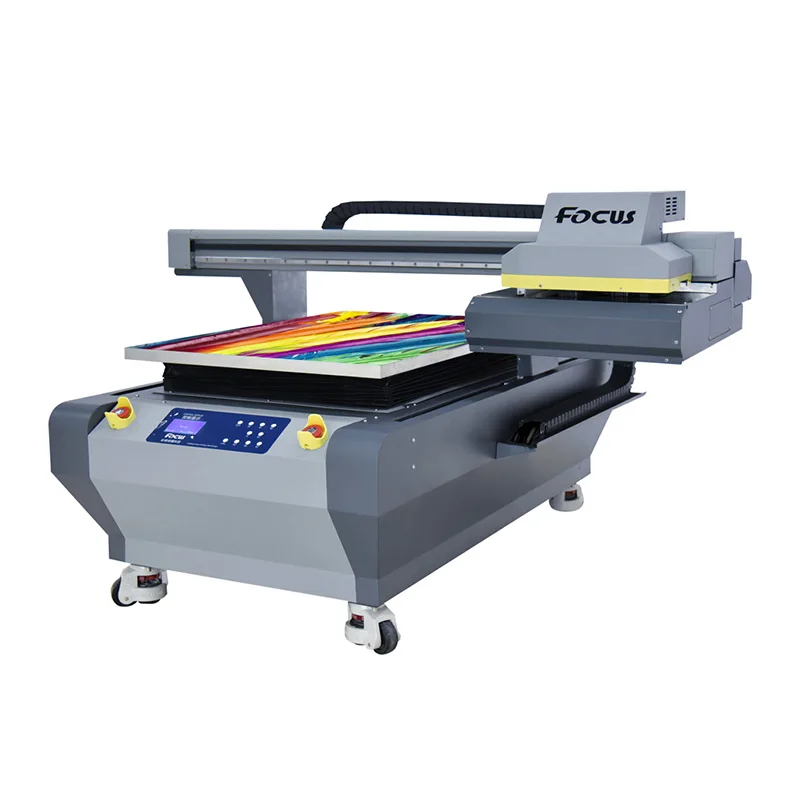

Product introduction of Galaxy Jet X A1 UV printer

Focus Galaxy Jet X A1 UV oil painting printer belongs to Galaxy-Jet, which is a multi functional LED digital UV printer that created by Focus, the printer was built with industrial configuration as thicken aluminum profile, water circulation cooling system, 100W automatic detect UV Curing system… max. 5760DPI resolution. Galaxy Jet X A1 UV printer Can print on bend, cylinder objects, balls etc. Output with good 3D texture printing result.

Model
Galaxy Jet X A1 UV oil painting printer
Repeat printing precision
Overlap small than 0.1mm
Head maintain
Head clean during/after printing, Keep-wet system when idle.
Ink system
Automatically Ink damper refill system
Max. printing size
A2+: 600mm*900mm
Print head
THREE EPSON XP600
Print color
CMYK+LCLM+WHITE+VARNISH
Print direction
Unidirection / Bidirection
Print speed
A2(1440dpi)/ 120s for oil painting printer
Max. media thickness
120mm
Max. media weight
15KG
Max. printing resolution
5760DPI*2880DPI*1440DPI*720DPI*360DPI
Ink volume
550ML
Ink type
UV environmentally ink
Height adjustable
Manual / Automatic
Print head protection
Intellective automatic detect
Working power
110-220V 50-60HZ 450W
Interface
USB2.0 /IEEE1394
System require
Windows XP / Vista/ Win7 / MAC I Linus
Working enviroment
25-30C, 50% Humidity, Dust free
Net weight/Gross weight
 260KG/300KG
Printer size
140CM*140CM*90CM
Packing size
158CM*158CM*118CM
LED-UV Function
UV lamp system
6 Power degree adjustable system
UV Power
100W
UV lamp life time
50000hours
UV light wavelength
390-400nm
Light power
500mw/w
Cooling type
Water circulation
Cooling adjustment
Automatic on/off between 25-30c
Control Software
FocusRIP-UV V3.5.0
Factory view
Detailed Images
Machine Parts of Galaxy Jet X A1 UV printer
The teflon coated adsorption vacuum A2 size 600*900mm table can print on the flexible material but without scratch the print head.

The laser engraved margin rule marked at the X and Y axis of the printing table. Easily locate the printing position and improve the printing effective.

Inspection of Galaxy Jet X A1 UV oil painting printer

Having a strict factory inspection standard, the precision of the platform and the bottom plate of the print head are all controlled by micrometer gauge.

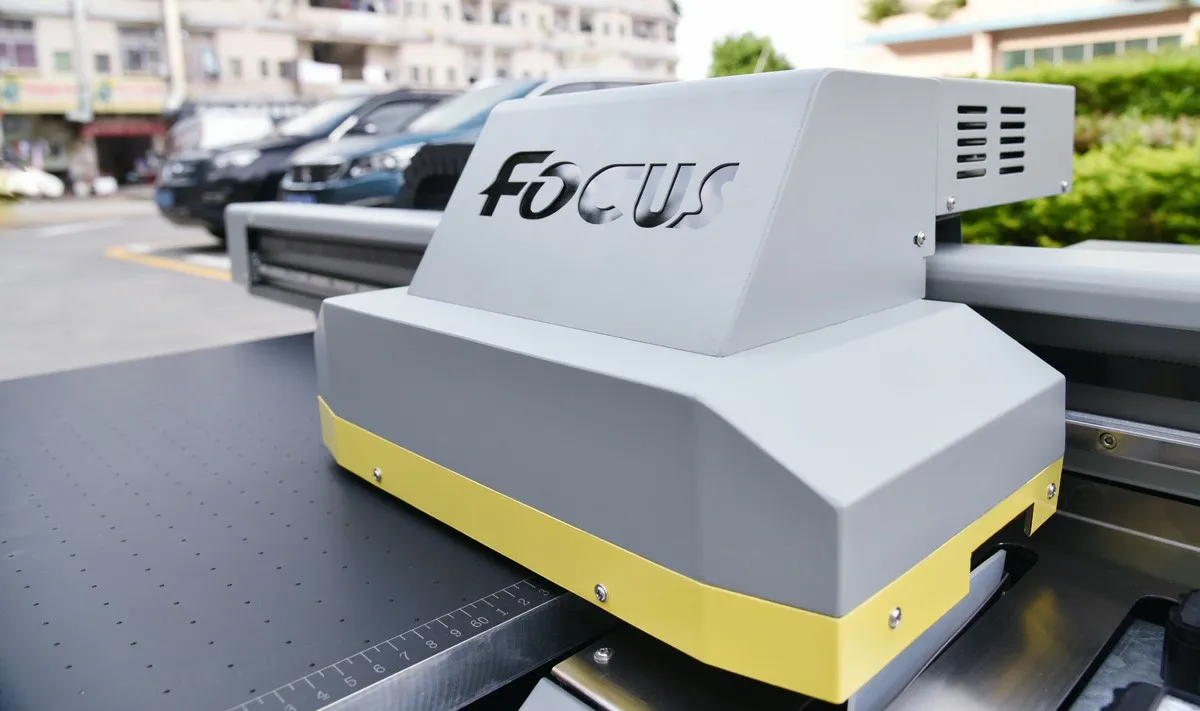

The laser hollowed-out acrylic viewing window design effectively prevents the UV light from harming the naked eye, and does not affect the monitoring of the printing substrate and print head.

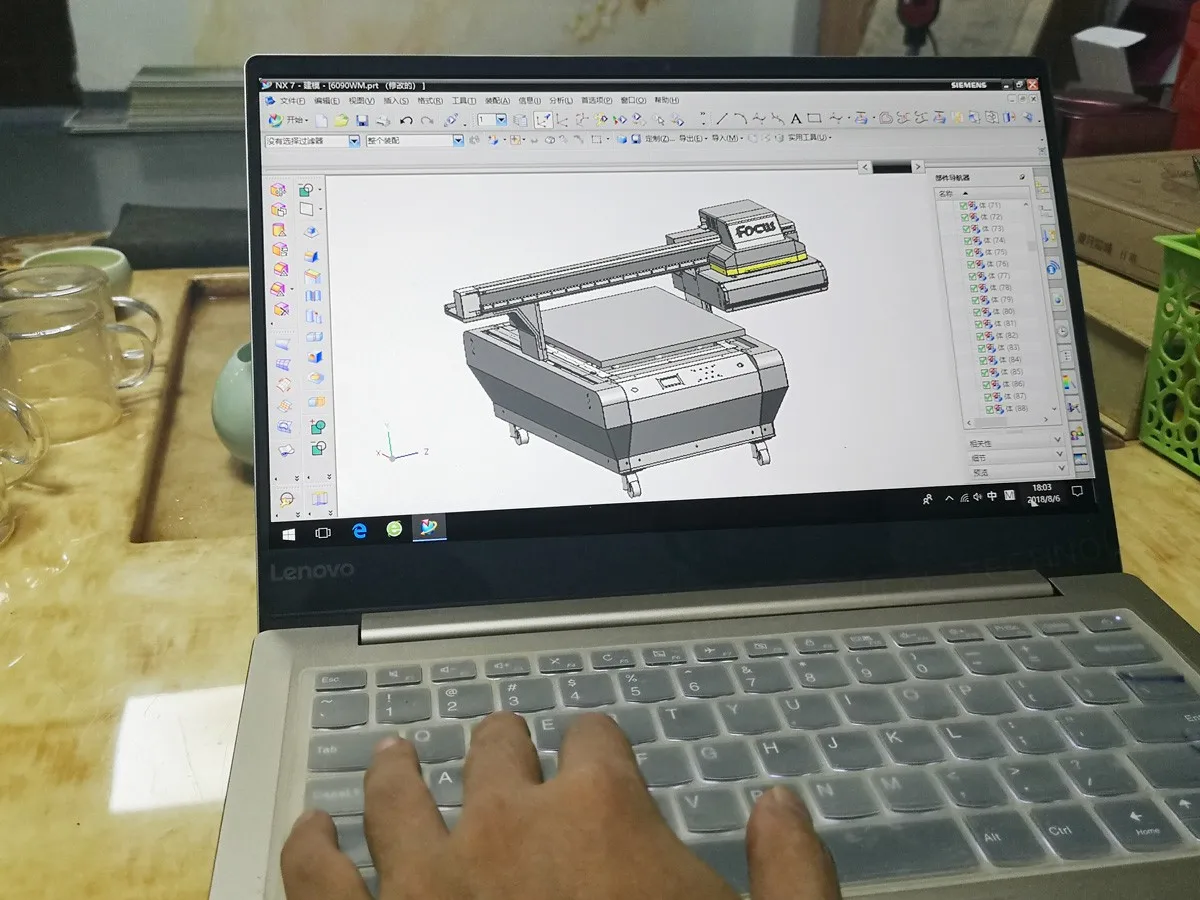

The appearance of the Galaxy-Jet X is researched and developed by Focus digital technology co. ltd. and gained the country patent.

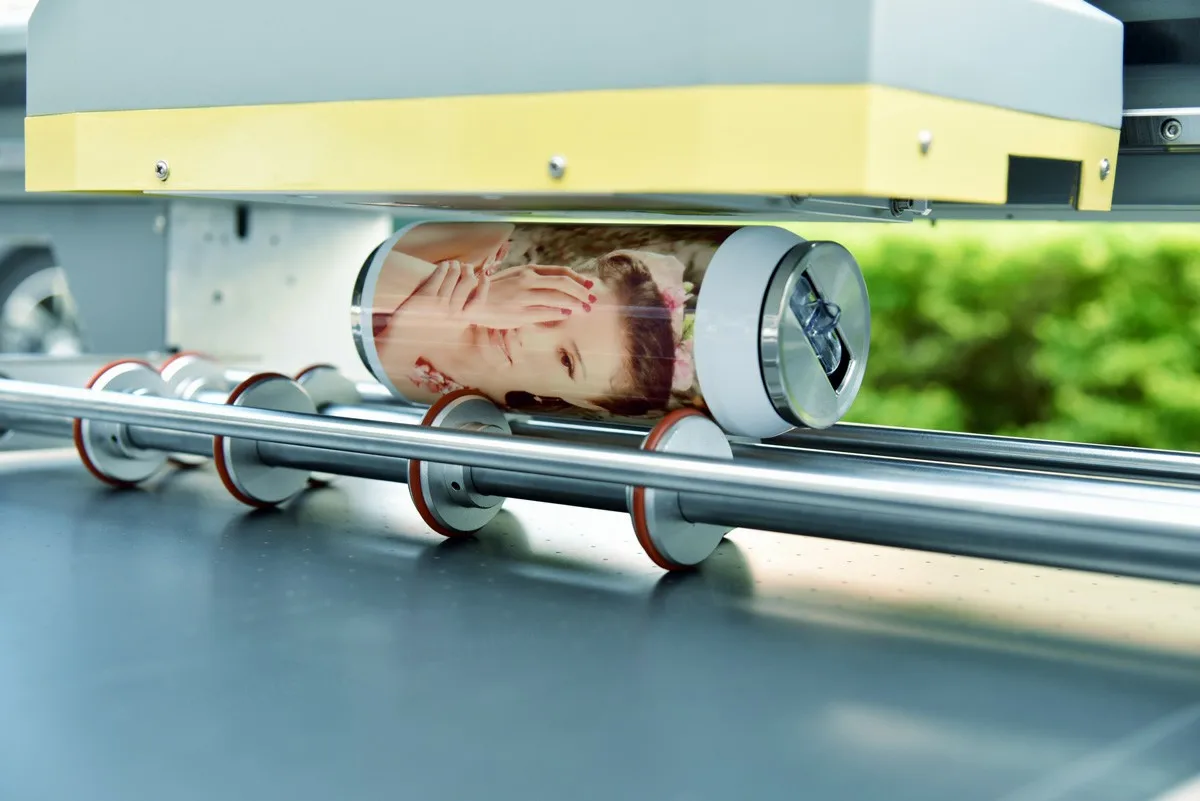

Adjustable cylindrical print tooling supports digital UV printing on any cylindrical material.

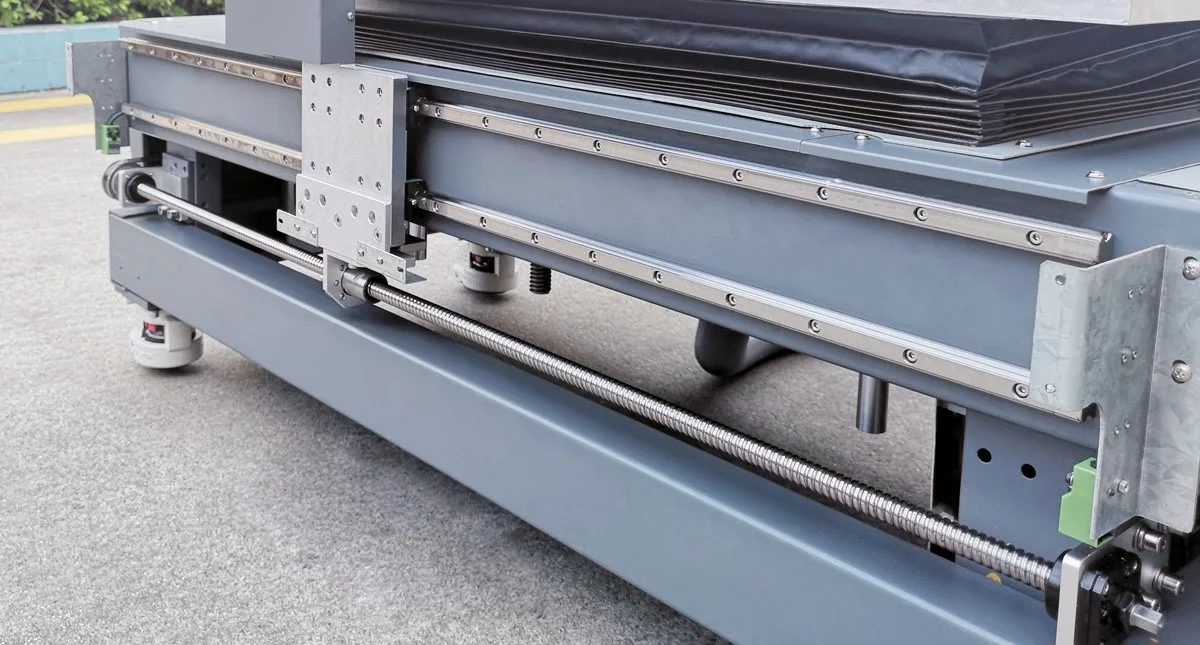

Thicken aluminium profile made as the keel of 6090 A1 uv printer to ensure the machine stably working.

Support max. material thickness 120mm. expand more printing area for customer.

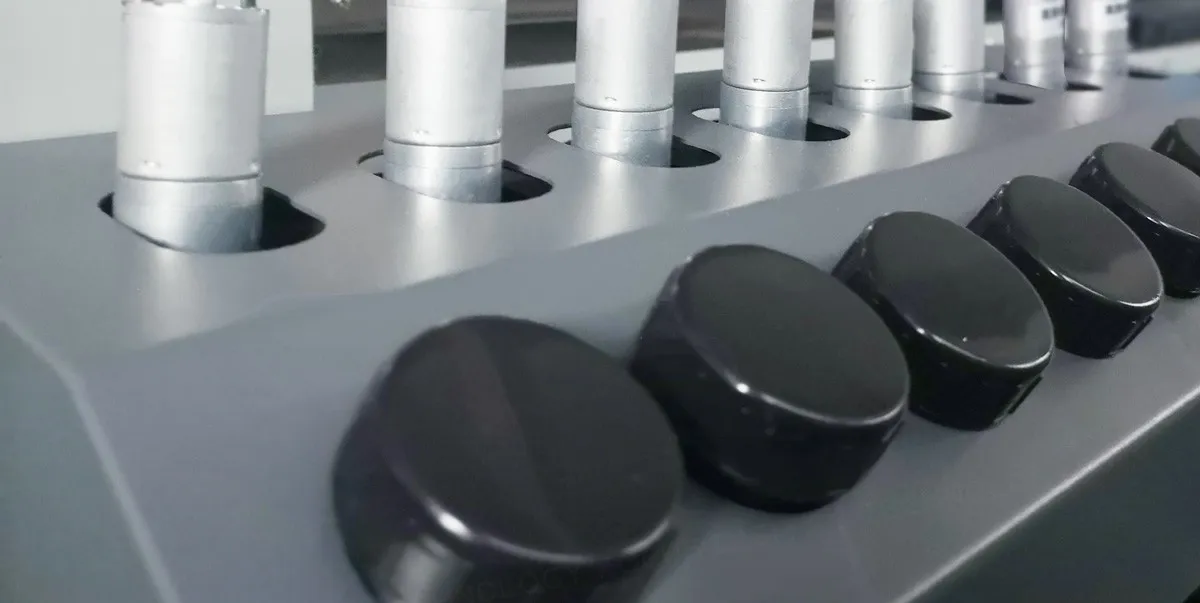

Added 8 individual ink-stirring function to prevent white, color and vanish sediment.

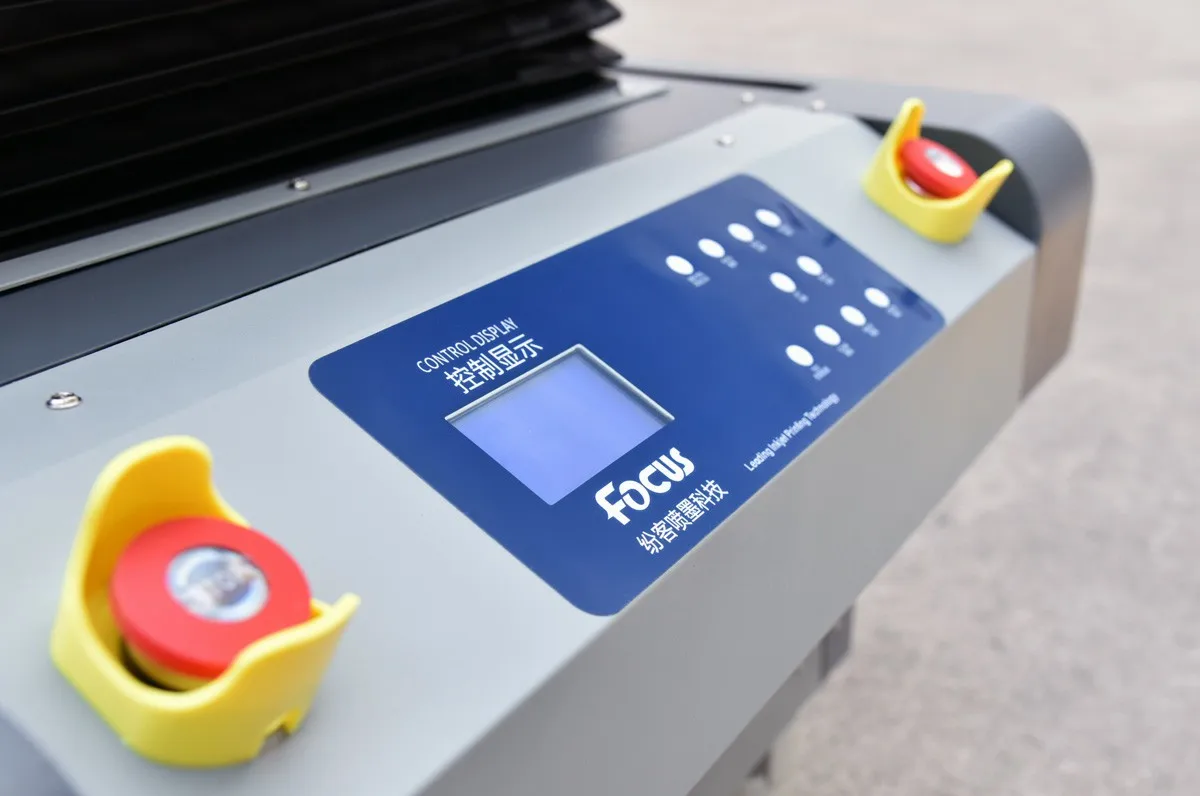

Dual emergency button design to be sure the safety operation and more convenience.

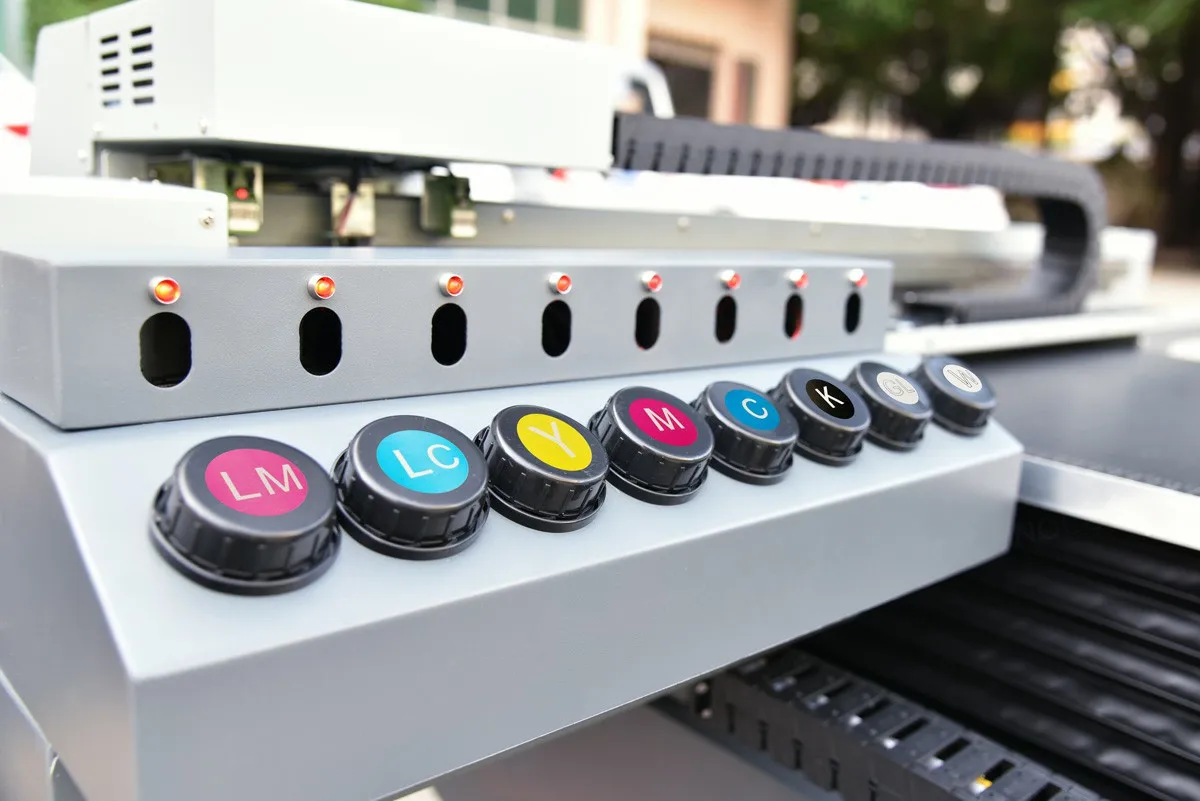

CMYK+LCLM color makes the color more vivid and natural, equipped with ink-lacked sensor .

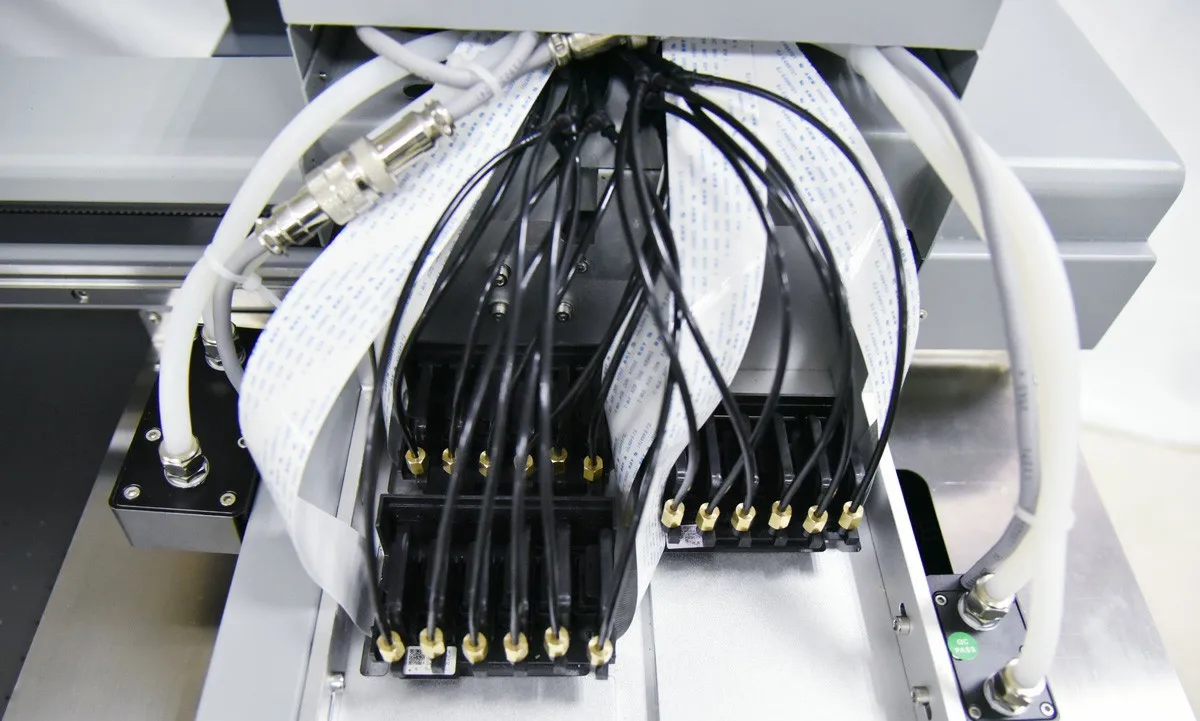

With three print heads, capable of stalling various of print heads like XP600, TX800, DX5, DX7 etc., allows white, color, vanish print at the same time, which highly enhance the print speed.

Beside, the breathe ink damper can also reduce the opportunity of print head clogging.

Software parts of Galaxy Jet X A1 UV oil painting printer

 Via attribute setting to control the ink size and different color, gets various and unique 3D and vanish texture output.

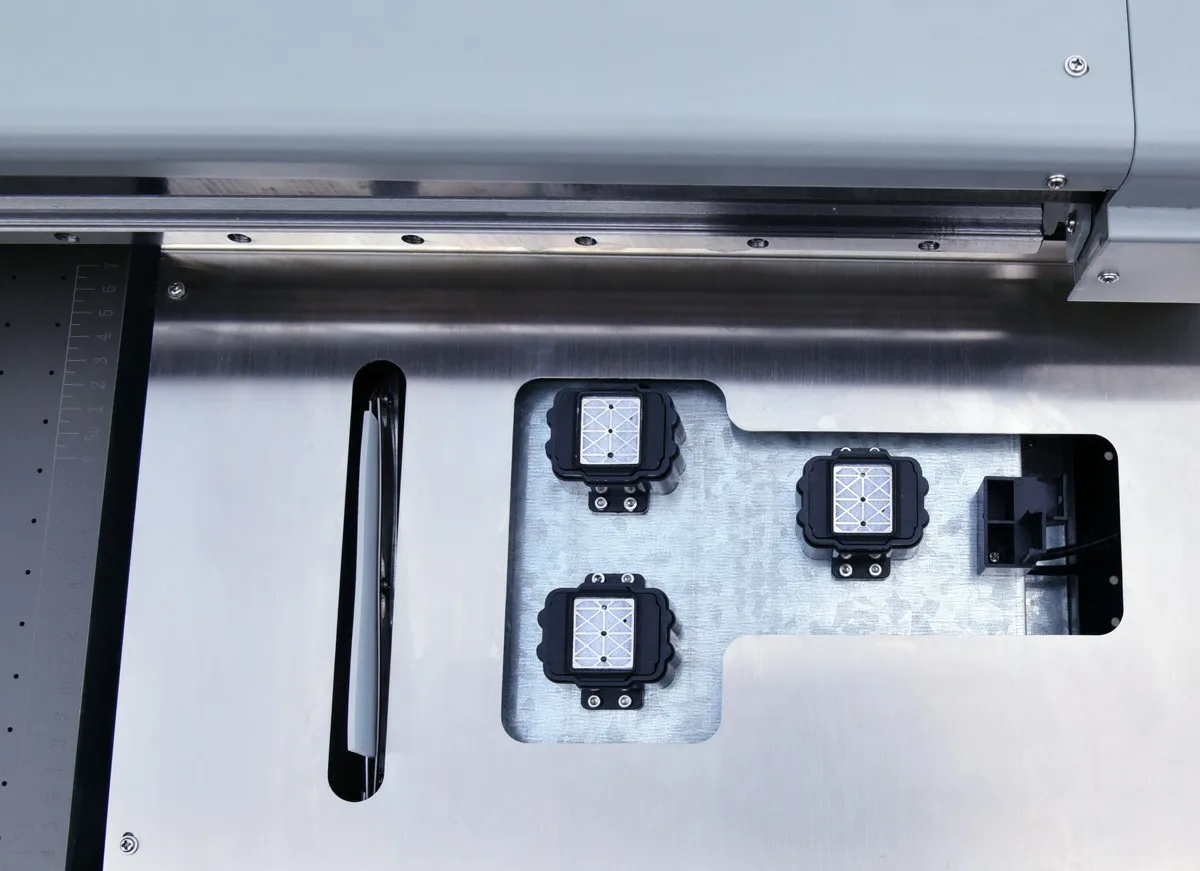

Automatic print head wipe and keep wet system. Automatic flushing when power on and keep wet when off. Just for prevent print head clog during idle and after printing.

Complete installation instruction video and specification allows you get familiar with the printer shortly.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Related Products

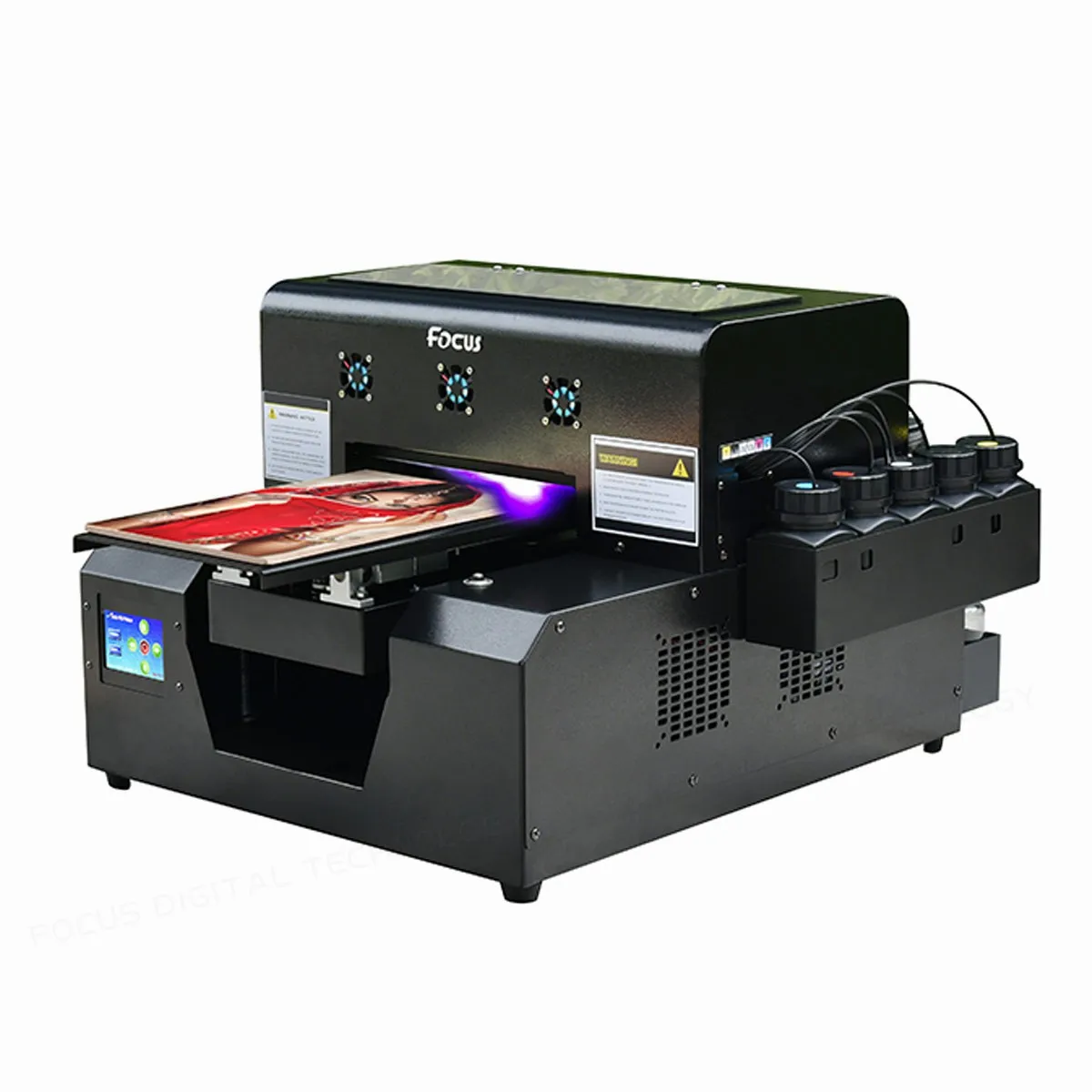

Focus Sapphire-Jet X mobile case printing machine A4 UV sticker label logo printer

98.7% Response Rate

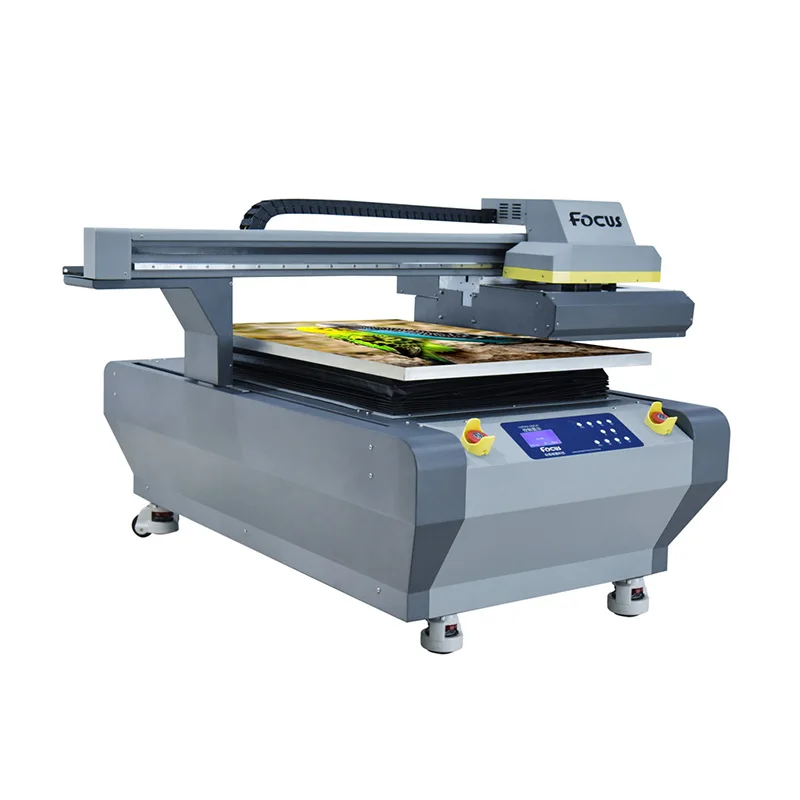

6090 china high speed uv flatbed inkjet printer for phone case id card metal 3d industrial leather uv printer machine
