Low cost inkjet corrugated box printer
Product Description
Carton packaging small batch order solution!
1.Application
Digital Inkjet Printing technology is non- touch printing,it's quite different production methods from traditional flexo or flexographic printing.Digital inkjet printing will replace Conventional Flexo Printing in the next 5 years.
You can find the differences of traditional flexo and digital inkjet printing as below:

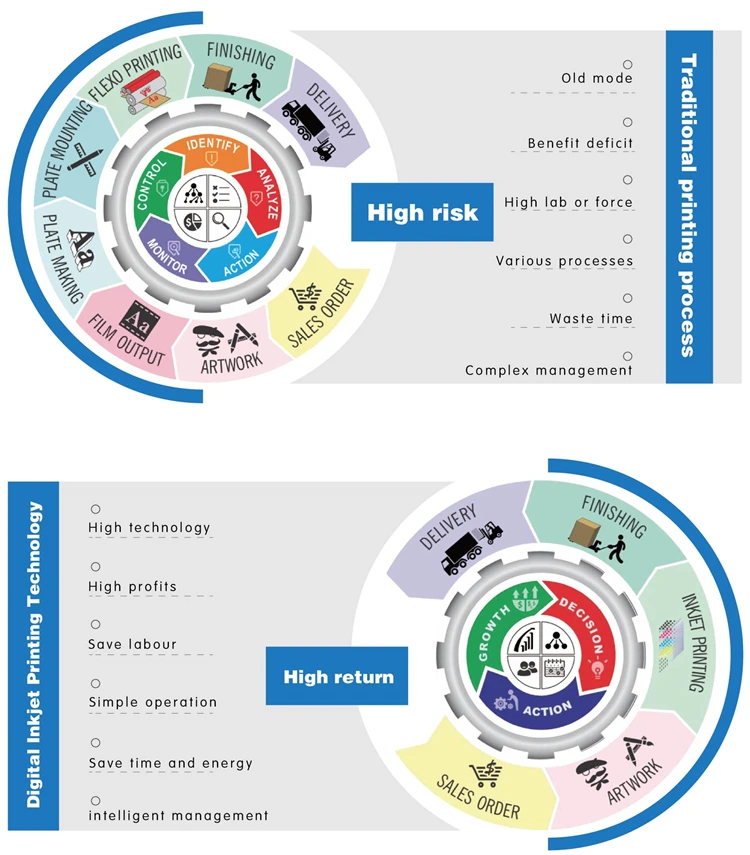

2.Digital Inkjet Printing VS The Traditional Flexo Printing Work Flow Comparison
1)The advantage of inkjet printing:
High technology
High profits
Save Labor
Simple operation
Save time and energy
Intelligent management
2)The disadvantage of the flexo printing
Old mode
Benefit deficit
High labor cost
Various processes
Waste time
Complex management
3.Specifications of YH2500-8H Digital printer
| Printing Head | 1.Epson Original Micro-piezoelectric 2.High precisionPrint Head.Max up to 8 Arrays for 8 Heads 3.Print Head to Board gap is 1mm to 2mm. 4.Each pass print width 271mm. | ||
| Ink | Water Base Dye Ink | ||
| Colour | C M Y K | ||
| Printing Speed | Mode | PASS | Area |
| High Speed | 1PASS | 500 SQM/h | |
| High precision | 2PASS | 250SQM/h | |
| Maximum Printing Width | 2500mm | ||
| Print Length Range | ≥550mm | ||
| Media Thickness | 3mm-20mm(≥20mm can be custom made) | ||
| Control Mode | P. L. C.System | ||
| Print Resolution | 2 pass:720*600 1 pass: 360*600 | ||
| Ink Drying Speed | Dry immediately for medium paper(drying speed vary depending on other substrate quality) | ||
| Software | Printer Manager by YH and RIP System | ||
| Working Environment | Room Temperature 10-35 Degrees,Humidity 20-70% | ||
| Rated Power& Power Supply | 10KW;AC380±10%,50-60HZ,3 phases | ||
| Machine Dimension | 4750(L)*2220(W)*1730(H)mm | ||
| Machine Weight | Net Weight=4500kg | ||

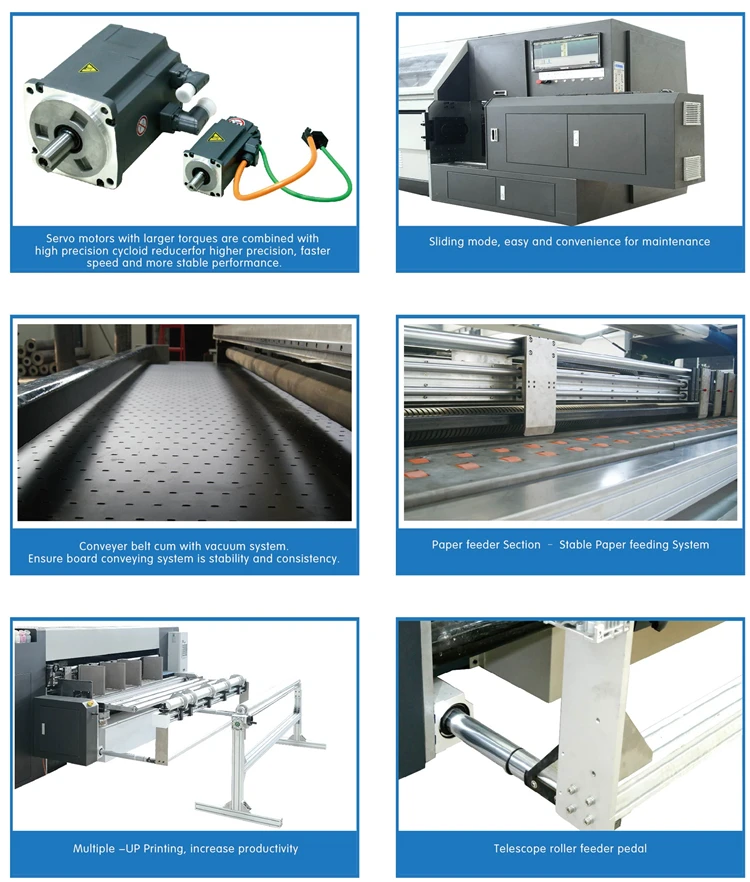

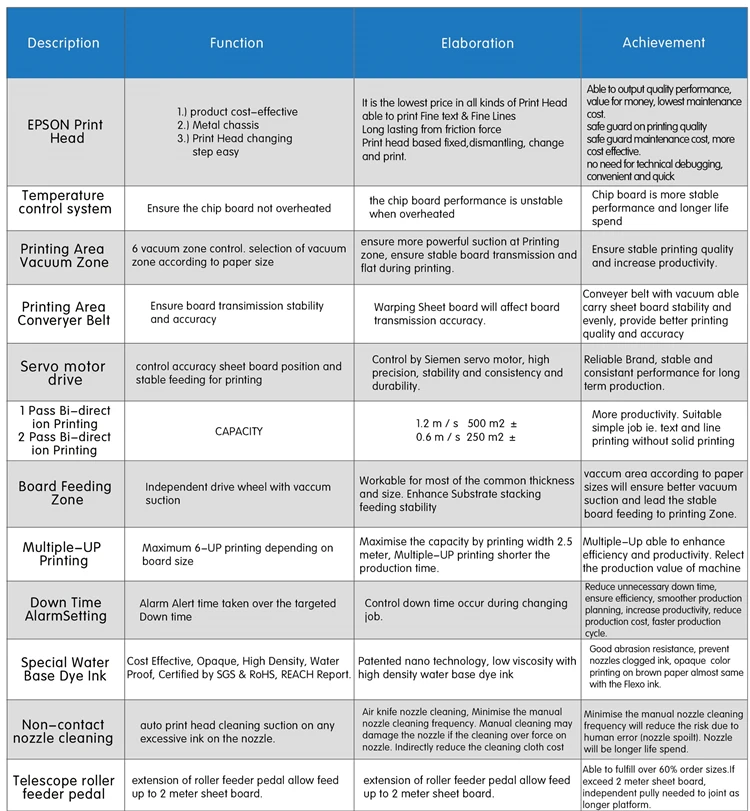

4. Feathers of YH2500-8H Digital printer

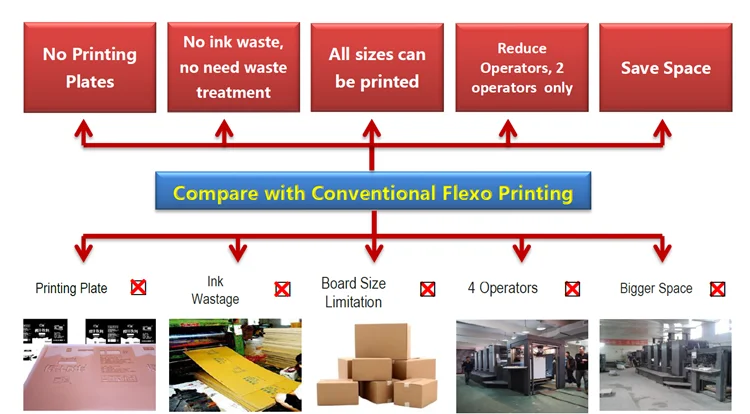

5. Advantages of YH2500-8H Digital printer's design

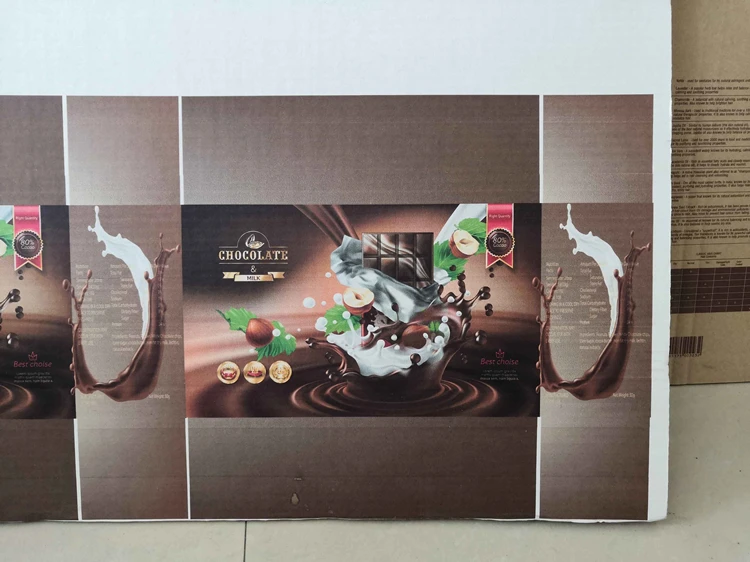

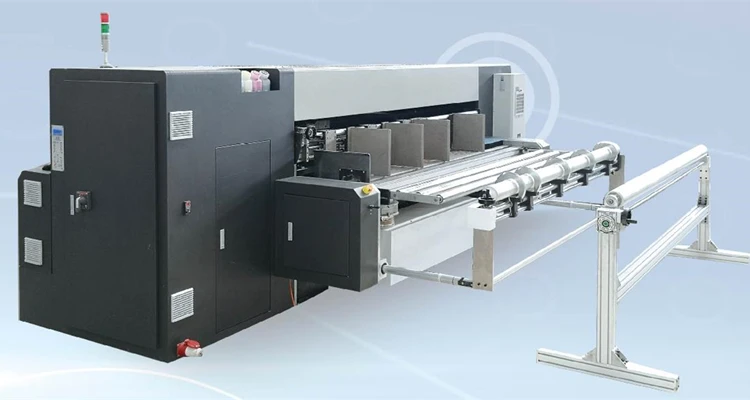

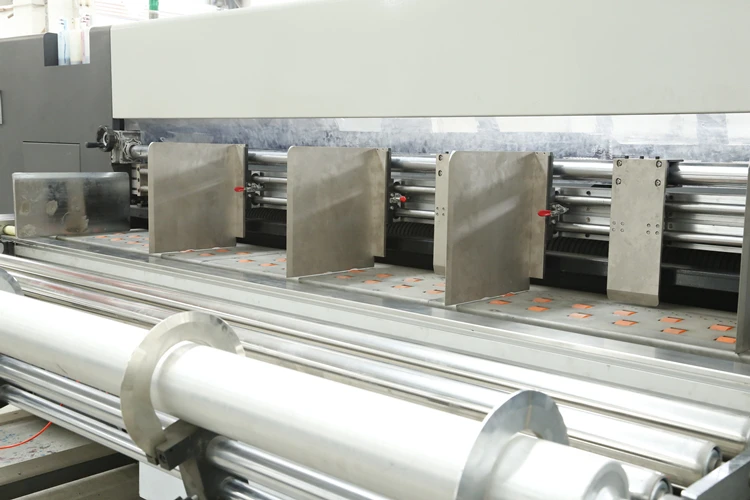

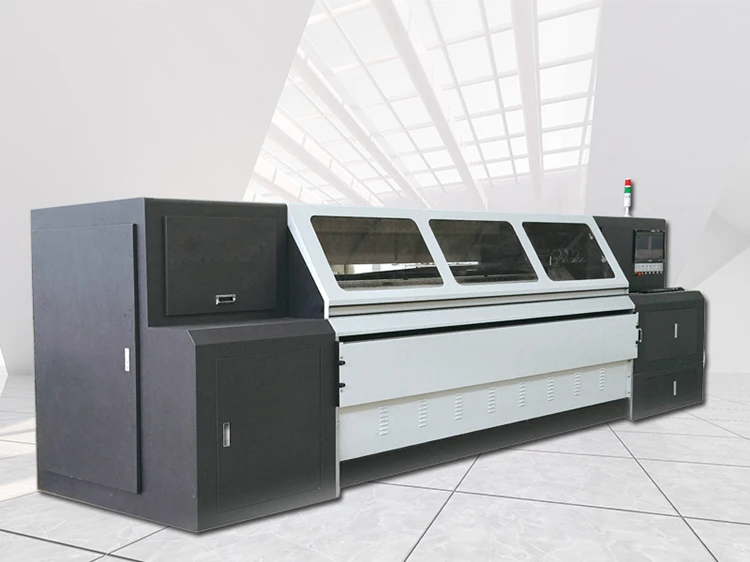

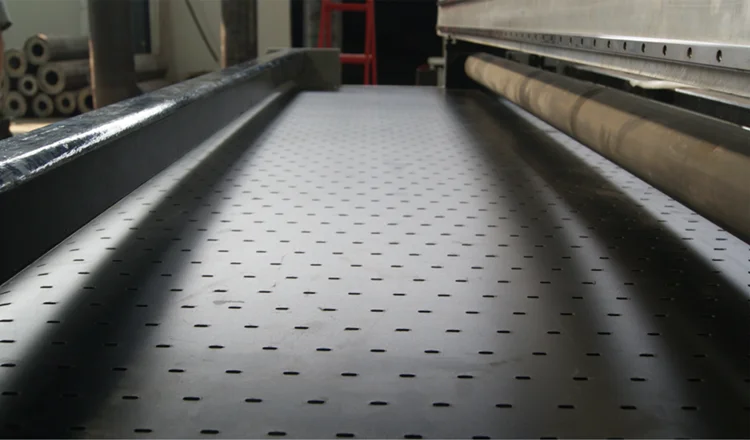

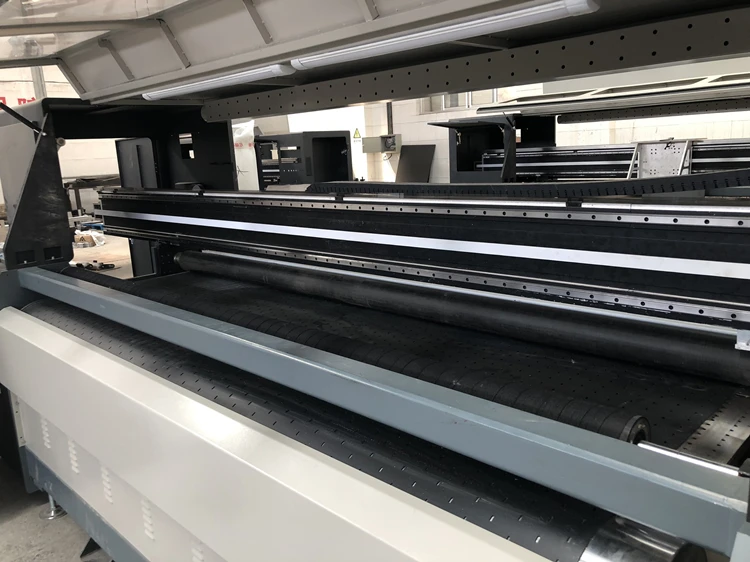

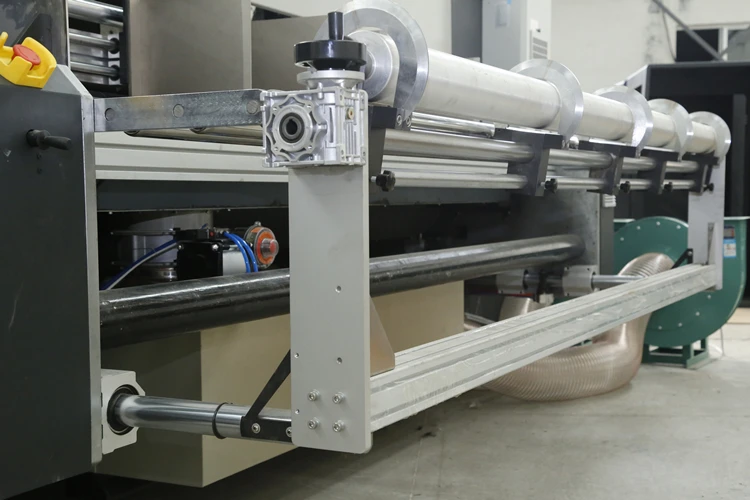

Product pictures
Company Information
FAQ
1.Are you manufacturer or Trading company?
We are manufacturer and we have been producing carton printer for cardboard,paperboard,pasteboard, chipboard,pressboard for more than 7years.
2.How big order is suitable for your printer?
Our carton printer is suitable for small order less than 2000 pieces,even you want to print 1piece of carton or carboard,we can also make it.
3.What's the delivery time?
Around 20~30days after pre payment received, however, based on order.
4.Can you provide foreign country machine install services?
Yes,we have a after service team can provide install services and engineers are available to solve prolems overseas.
5. Can you supply the ink which are used on your machine?
Yes,sure.
