Product Features:

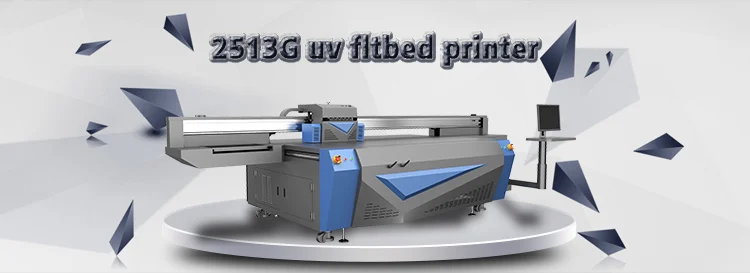

YF-2513G is an industrial uv flatbed printer.

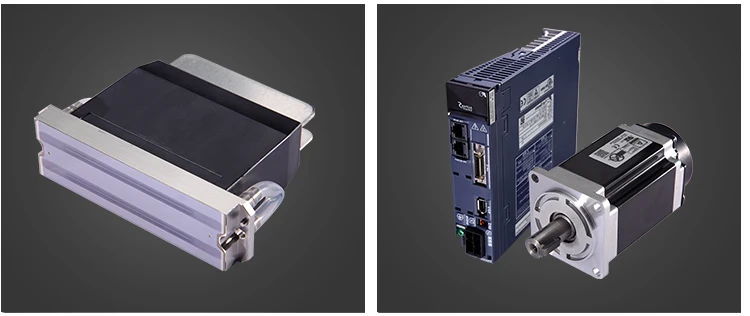

(1) Ricoh Gen5 print head
(2) FUJI servo motor control system from Japan

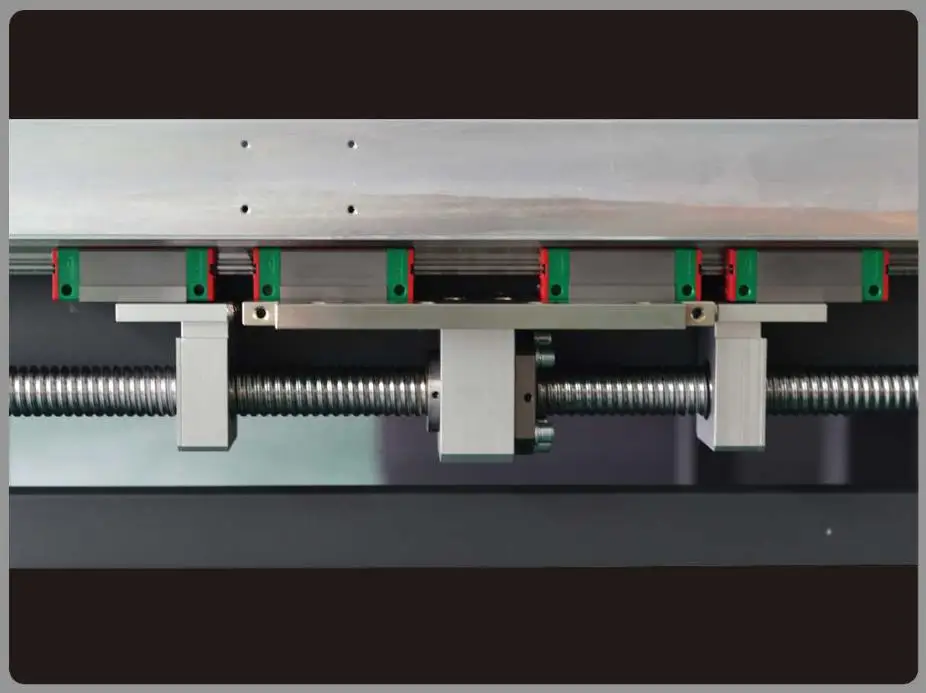

(3 )THK guide rail from Japan
(4) 100% aluminium automatic ink supply system

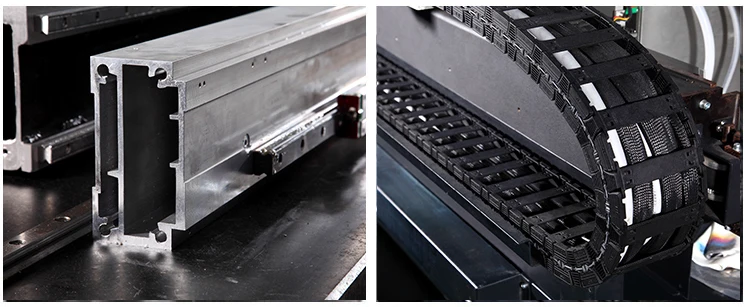

(5) Aluminium guide rail gantry
(6) IGUS tank chain & high flexible wires

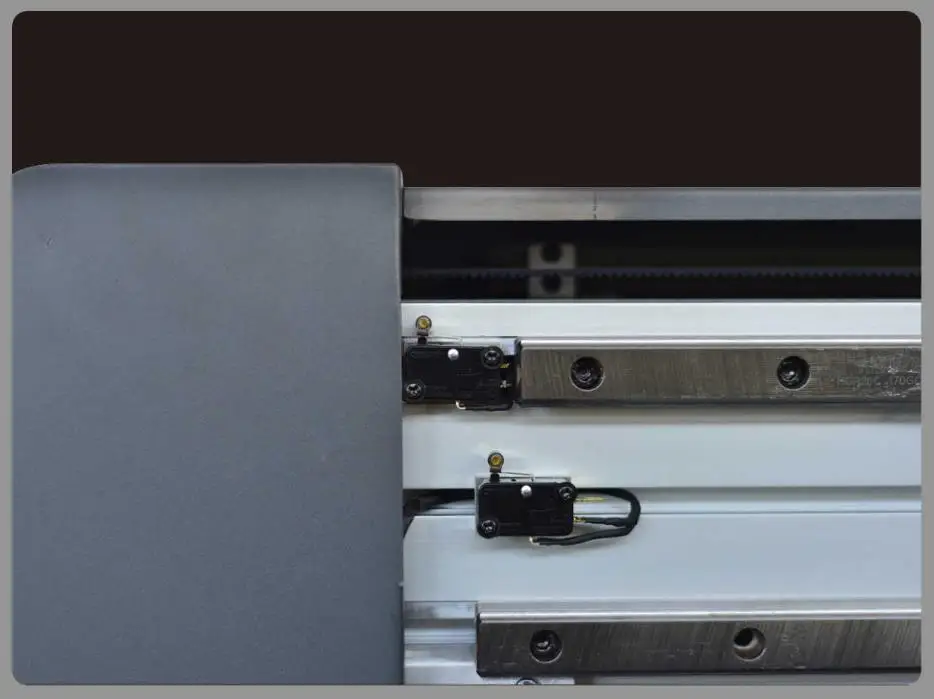

(7) Automatic collision avoidance
(8) Machine useheight measurement
(9) Detachable beam
Product Paramenters
| Model | YF-2513G | ||
| Printer Head | Ricoh Gen5 | Konica 1024i | |
| Printer Head Number | 2-8 | 4-16 | |
| Printer Mode | 4C/6C+W+V | ||
| Printer Width | 2400MM*1200MM | ||
Resolution/Speed |
40 Square meter/H (4 pass) | 40 Square meter/H (4 pass) | |
| 34 Square meter/H (6 pass) | 34 Square meter/H (6 pass) | ||
| 20 Square meter/H (8 pass) | 20 Square meter/H (8 pass) | ||
| Print Resolution | 720*1800DPI | ||
| Ink type | Environmentally friendly UV ink(without VOC),UV white ink and Varnish is optional | ||
| Maximum thickness | Max.80mm | ||
| Media type | PVC board, Acrylic board, Tile, Glass, Metal painting, Signboard, Mobile phone case, Paper case, Wine bottle, etc. | ||
| Curing System | UV Curing System | ||
| Film Format | BMP/TIFF/EPS/PDF/AI/JPEG | ||
| Output port | USB 3.0 | ||
| Running system | Windows 7 /8/10 | ||
| RIP software | Photoprint/Onyx/Caldera/Colorget/Color | ||
| Power supply spec | 220VAC(±10%)Single Phase, 50/60HZ | ||
| Power | 5.5KW | ||

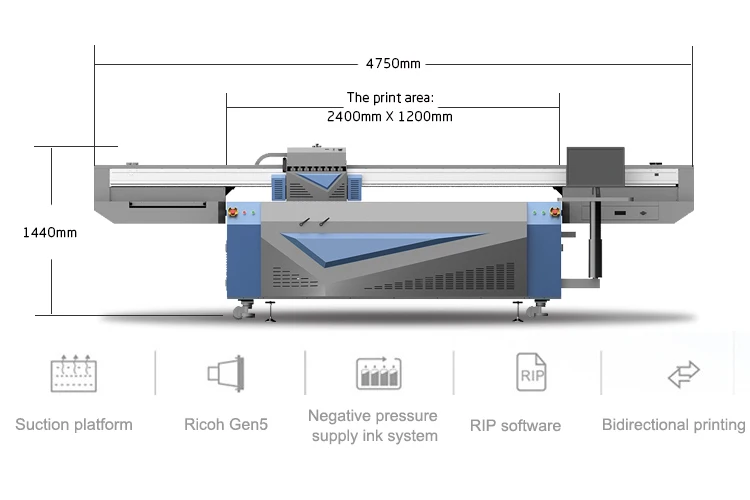

| Dimension size | 4.75m(L) * 2.1m(W) * 1.4m(H) | ||
| Packing size | 5.0m(L) * 2.1m(W) * 1.8m(H) | ||
| Operation environment | Temp: 20°C – 35°C , Humidity: 50% RH – 60% RH | ||
Printing Technology

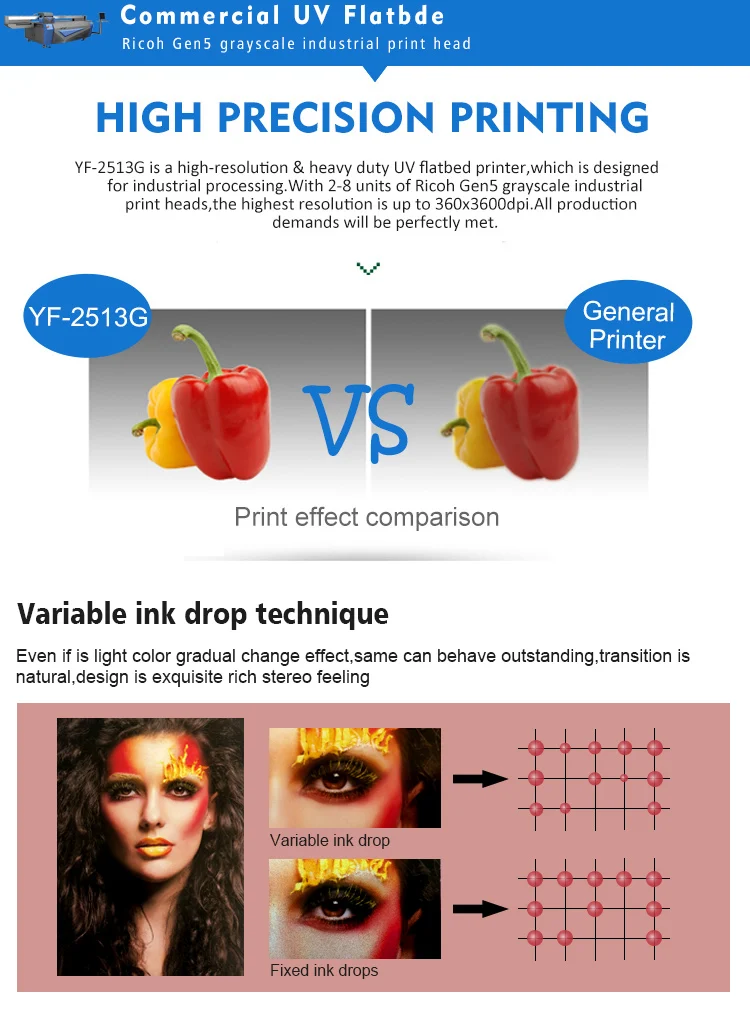

High precision printing
YF-2513G is a high-resolution & heavy duty UV flatbed printer,which is designed for industrial processing.With 2-8 units of Ricoh Gen5 grayscale industrial print heads,the highest resolution is up to 360x3600dpi.All production demands will be perfectly met
Application industry .
1) Advertising seriseThe main application :Billboards, light boxes, logo, signs Etc.
Applicable materials :Acrylic, organic glass, ABS board, PVC expansion sheet, aluminous model board Etc.#436cae
2) Electronic products series
The main application :phone cover, cell phone holster, mobile power supply, refrigerator plate, induction cooker panel, electrical panel Etc.
Applicable materials :PC, TPU, ABS, PU leather, Acrylic, glass, Stainless steel panel Etc.
3) Decoration materials serise
The main application :TV setting wall, 3d background wall, sliding door, shutters, integration ceiling, Etc.
Applicable materials :Ceramic tiles, glass, Artificial marble, stainless steel, aluminium-plastic panel, microlite, wood board,Resin composite board Etc.
4) Arts and crafts seriseThe main application :Gift boxes, bottles, charcoal carving art, Adornment picture, tag Ect.
Applicable materials :Wood board, glass, Acrylic, jade, Aluminum plate Etc.
Applicable Materials
Print Sample

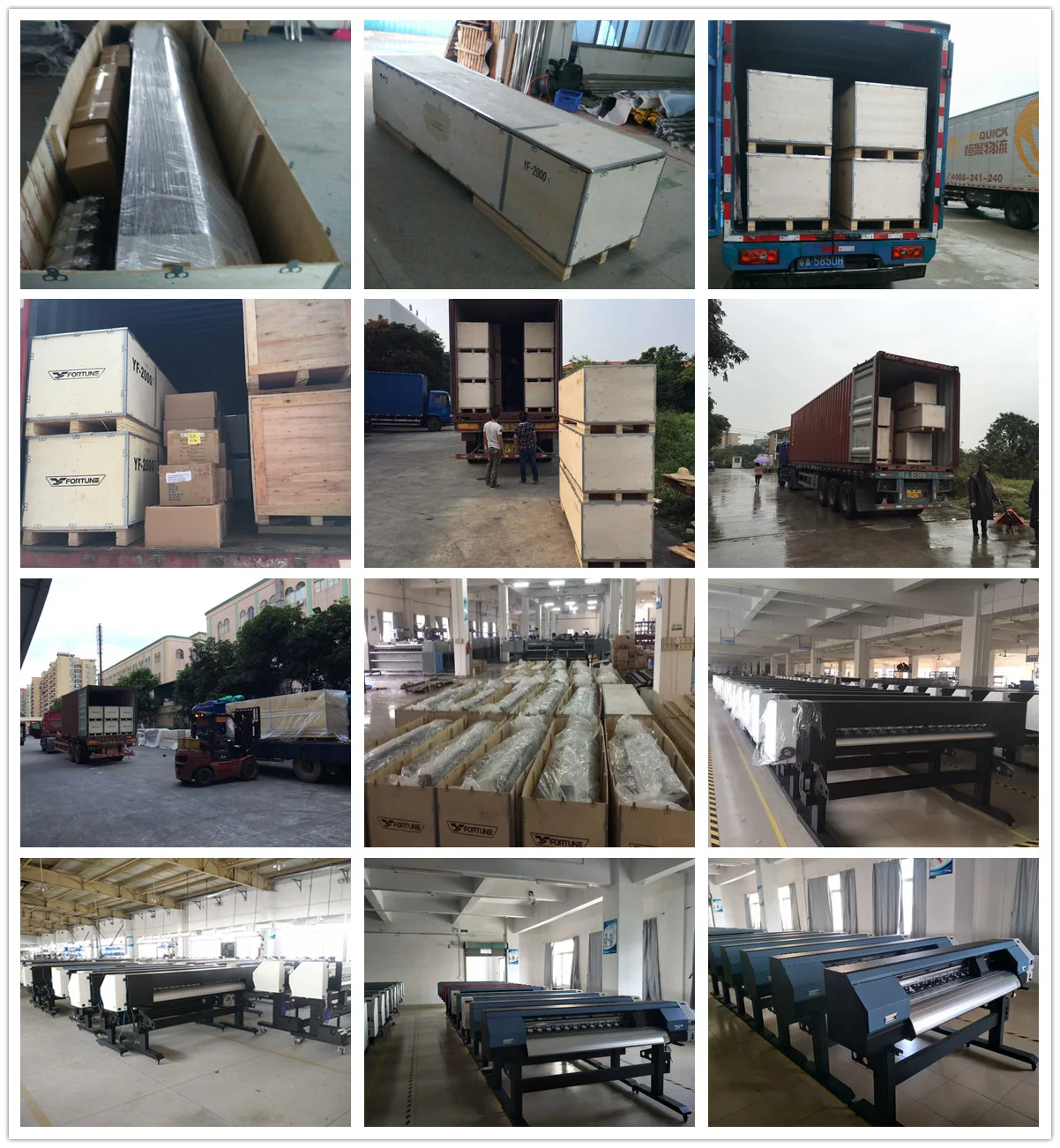

Packing&Shipping
Company IntroductionGuangzhou Tuhui Electronic Technology Co., Ltd.
We have 10 years industry experience of digital printing, Lead the team uphold excellence, down-to -earth, dedicated spirit, it is committed to provide users with high quality, applicable and pratical intelligence spray printing equipment.
Our company has a complete set of spray printing supporting scheme and after-sales service team,and is committed to creating higt-quality products with customer satisfaction and leading in the industry.
Cooperative customer
Sales cover many countries and regions around the world, and major exporting countries have UK, Poland, Russia, Saudi Arabia, United Arab Emirates, Kenya, Turkey, Brazil, Philippines, Indonesia, Vietnam, Kazakhstan, Thailand, Ghana, Morocco, Ecuador…
What service can we provide for you?
1.One year warranty, life-long after-sales service.
2.Technologist instant online support service.
3.One to one professional technical free training. We can send engineers to install the machine overseas.
4.For printer ink, the more you order, the cheaper the price !
5.Welcome to visit our Company or Factory at any time.
(1) 24-hours Online Service.
Good online service, instantly answer the questions for you.
(2) Free Training.
One to one technical operation free training.
(3) Technical Support.
Remote guidance maintenance;
(4) Ink & Spare Part Supply.
Long-term supply of high quality original ink and spare parts.Certificate
FAQ1) Do you offer free printing samples?
Yes, we can print some samples according to customer's requirements.
2) What's your delivery time?
We will arrange the delivery within 3~7 working days after received the deposit.
3) What payment method are supported?
Payment method is T/T or LC, PayPal, Western Union, Credit Card, etc.
4) If I have some technical problem, how can you help us to solve it?
Detailed description, photos or video will help our technician analyze the problem and give solution accordingly.
5) Once there is something need to replace, what can I do?We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back the broken ones. We suggest that users order spare parts package for long time maintenance and fast replacement.
6) Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.Related ProductsOur products include:UV Flatbed Printer, ECO Solvent Printer, Roll-to-Roll UV Printer, Solvent Printer, Sublimation Printer, Printer Ink, Printer Spare
