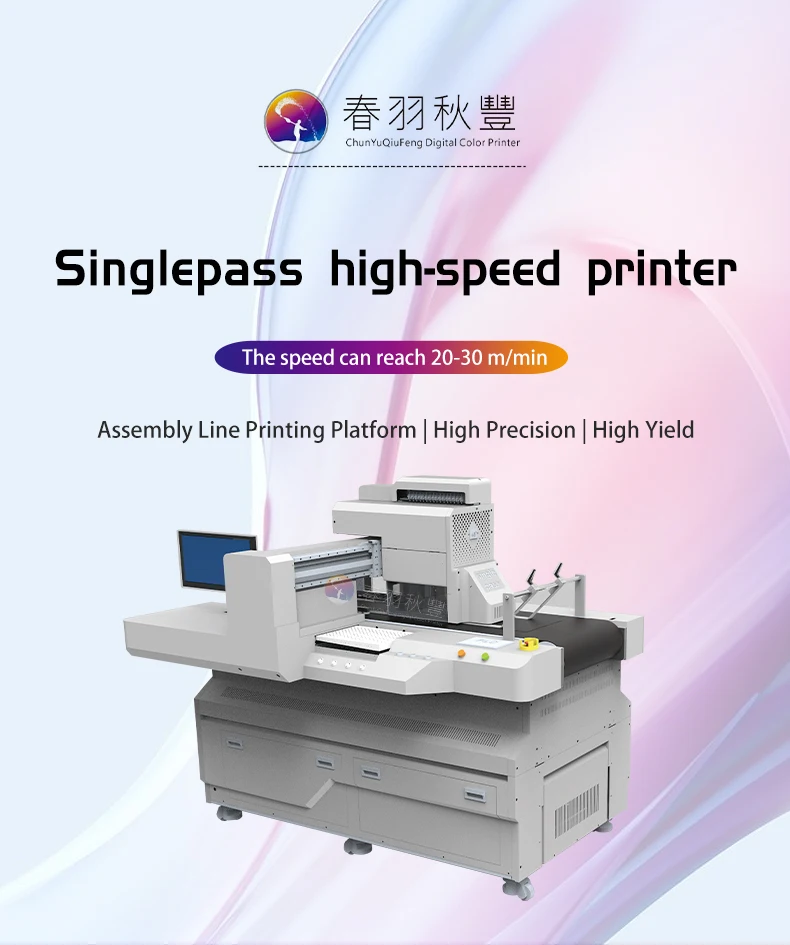

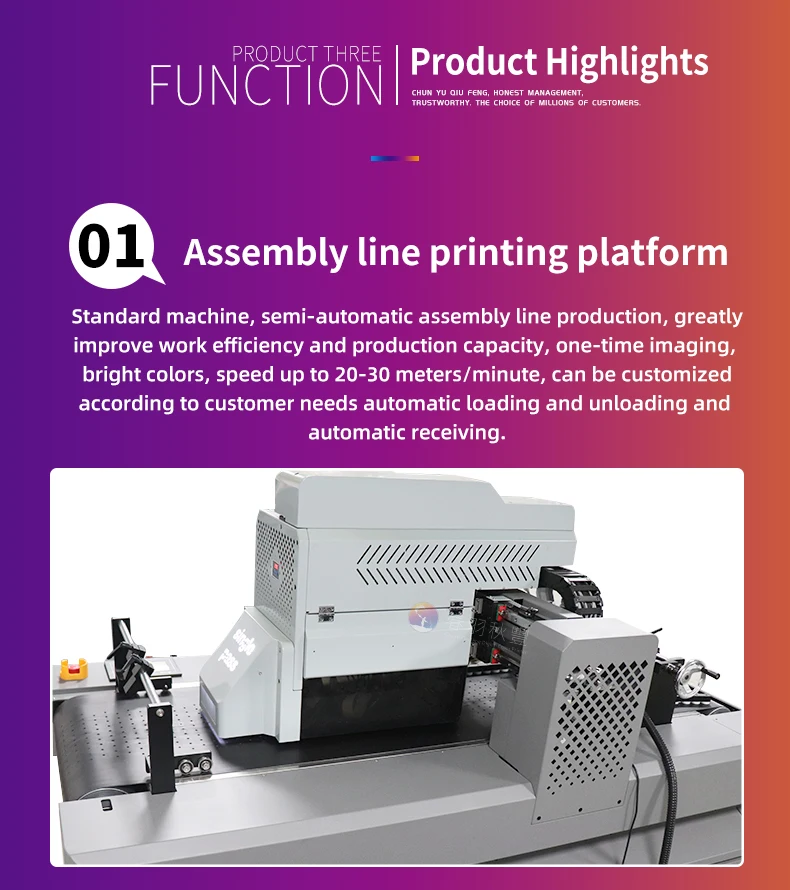

| Single Pass | ||

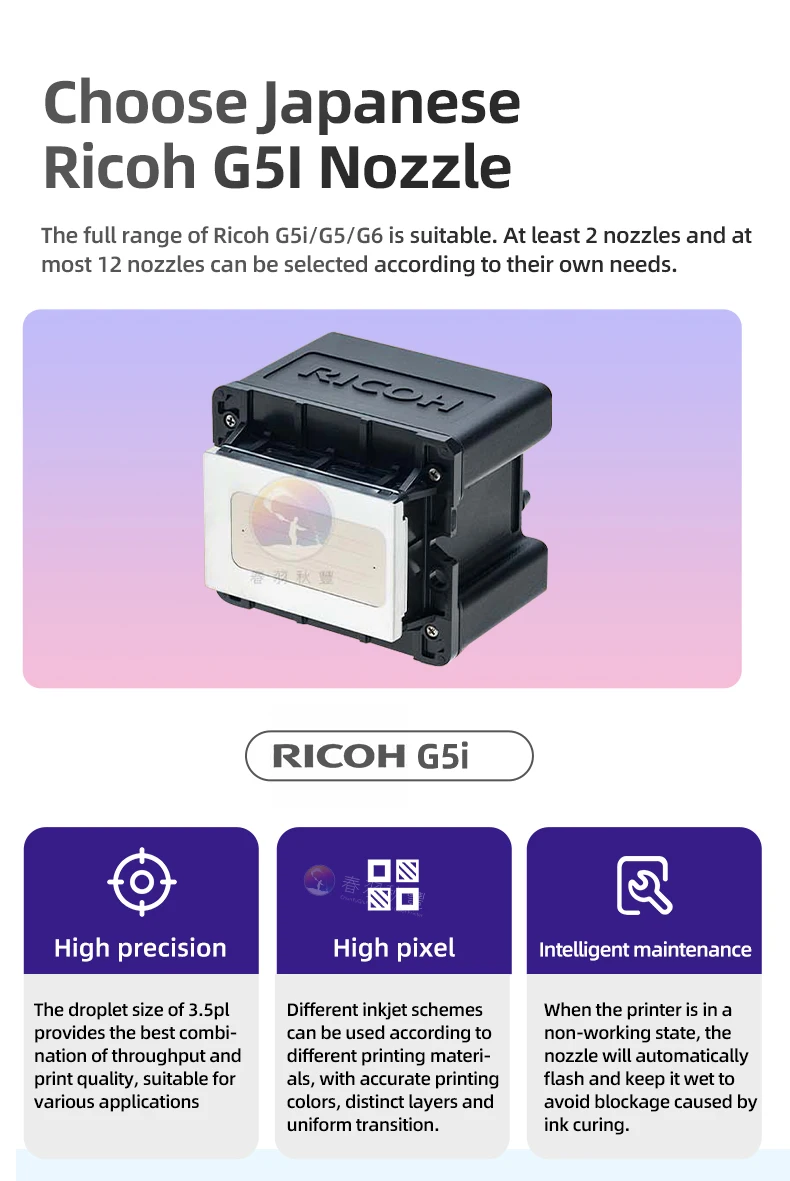

| Nozzel | G5i /G5/G6 | |
| Nozzel precision | 1200×600 1200x1200dpi(Variable point) | |

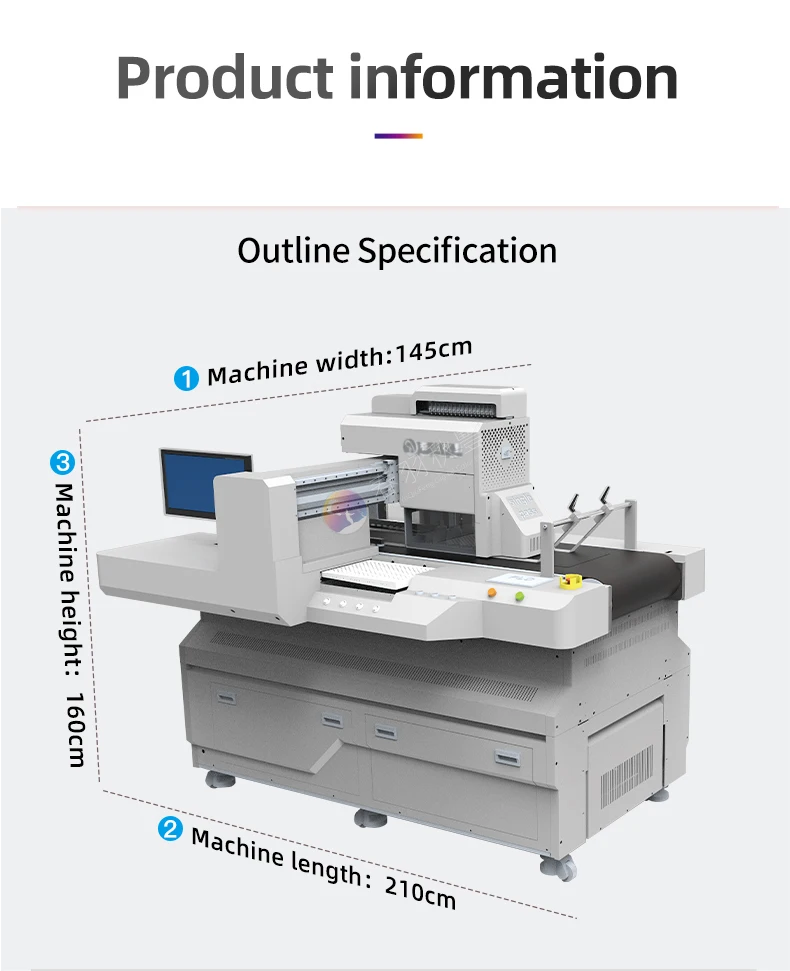

| Equipment Dimension | L*W*H 210CM*145CM*160CM | |
| Print dimension | W:5.3cm\\\\10.6cm\\\\15.9cm L:No limited | |
| medium height | Maximum W:50CM, Maximum H:10CM | |
| printing software | PHOTOPRINT/ PrintFactory | |
| ink Type | Led enviromental UV ink\\\\Determine the ink by the characteristics of the printing material | |
| Ink matching scheme | 1.KCMY 2. KCMY+W 3.KCMYLCLM+W 4.KCMYW+V | |
| Related Voltage | 220v 50/60HZ | |
| Verified power | 3000W | |
| Equipment N.W | 800kg | |
| Non-standard customization | The automatic loading and unloading scheme can be customized according to customer needs. | |
| Nozzle scheme | 1：4pcs G5I（KCMY） 2：6pcs G5I（KCMY+W） 3：4pcs G5/G6(KCMY) 4：5pcs G5/G6（KCMY+W） 5: 8pcs G5/G6（KCMY） 6: 10pcs G5/G6（KCMY+W） 7: 12pcs G5/G6（KCMY） | |

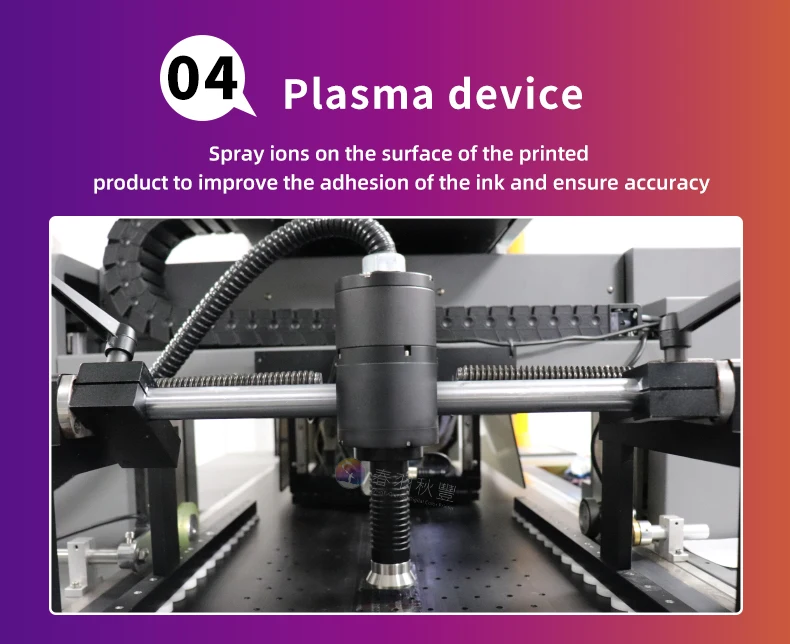

| Plasma | Optional installation according to material effect requirements | |
| printer head speed | 20M/Min(Up to 30 M/Min) | |
