Product Description
Appearance
Simple beauty, exquisite craftsmanship.
Printhead
Japanese DX5/DX7/XP600/TX800/ I3200 Printhead 2-4 units.
Application
Wide range of applications to meet a variety of needs.

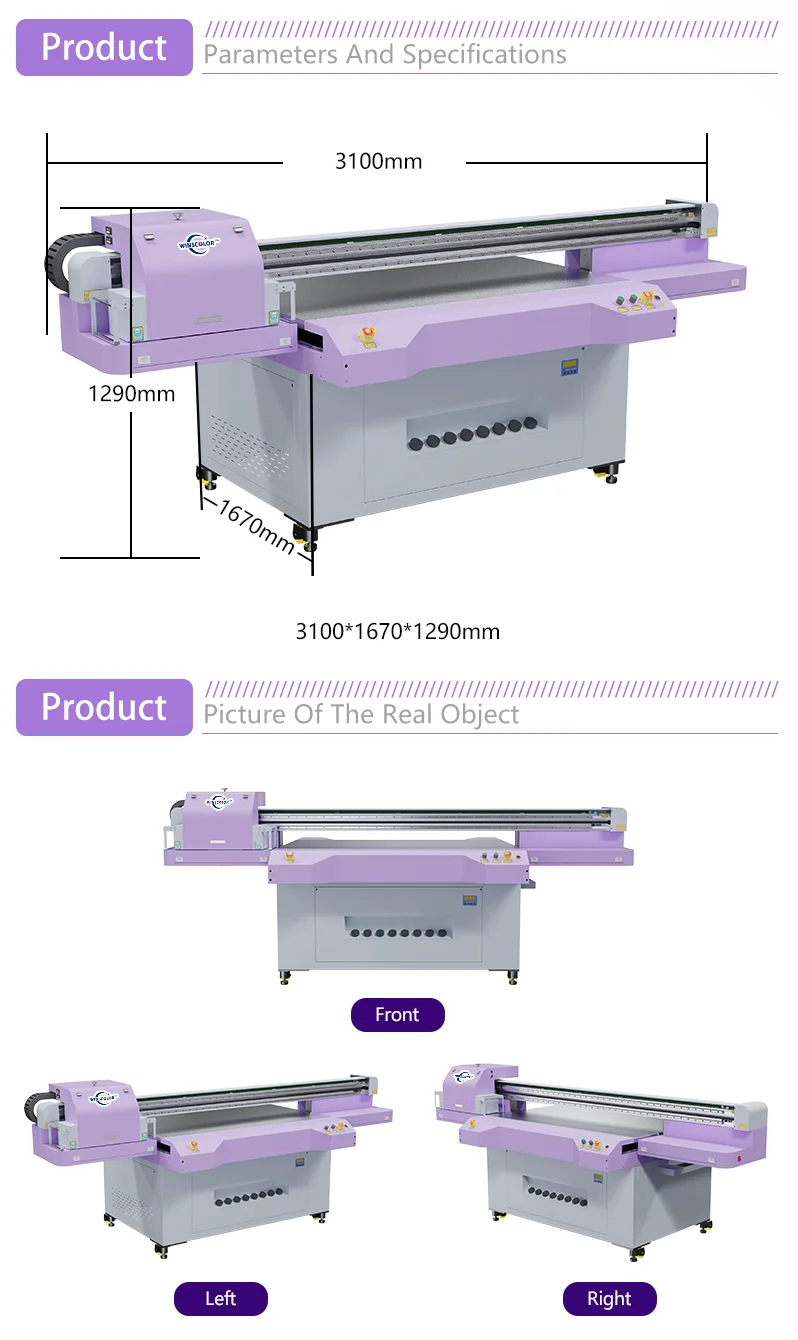

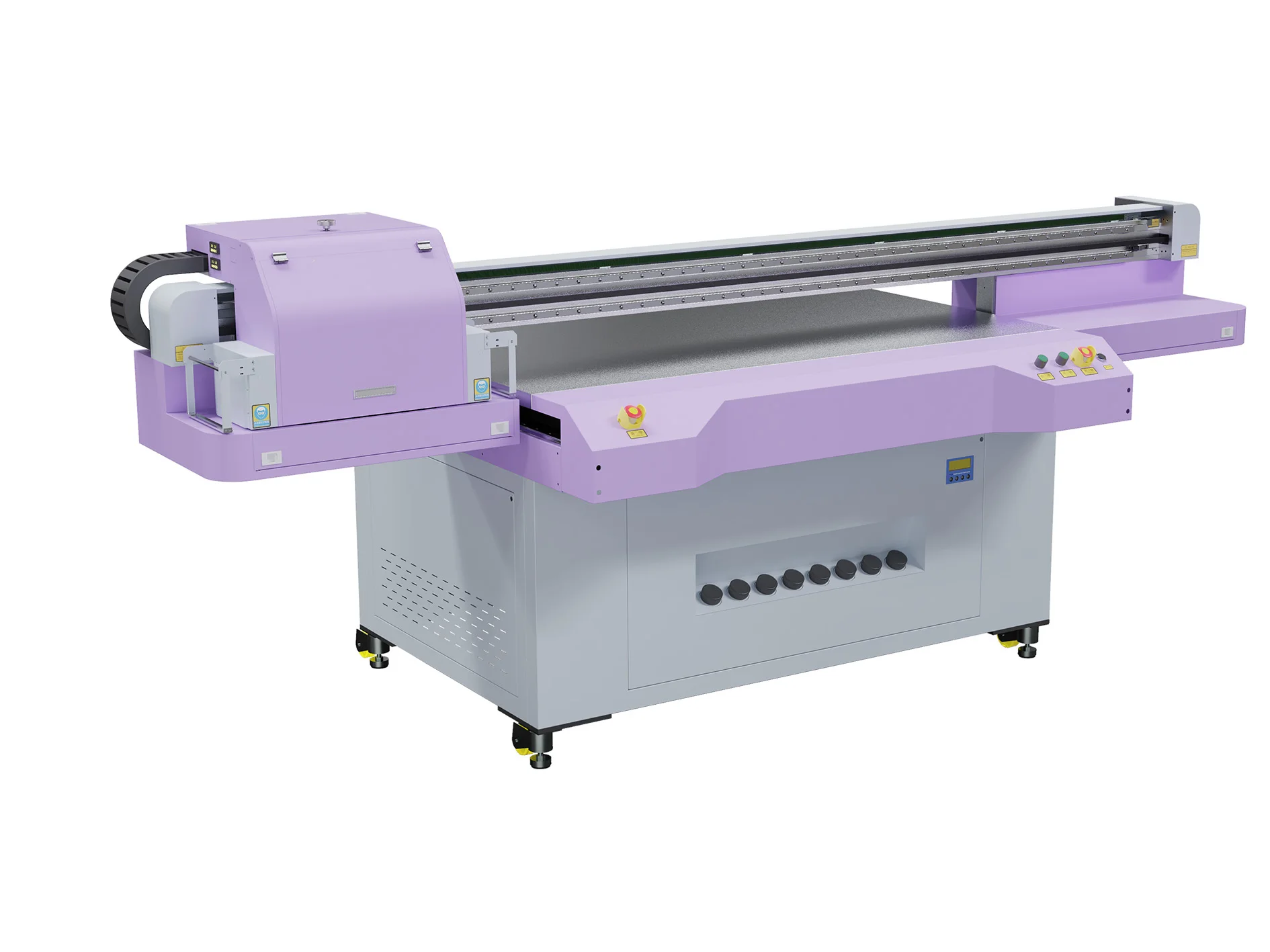

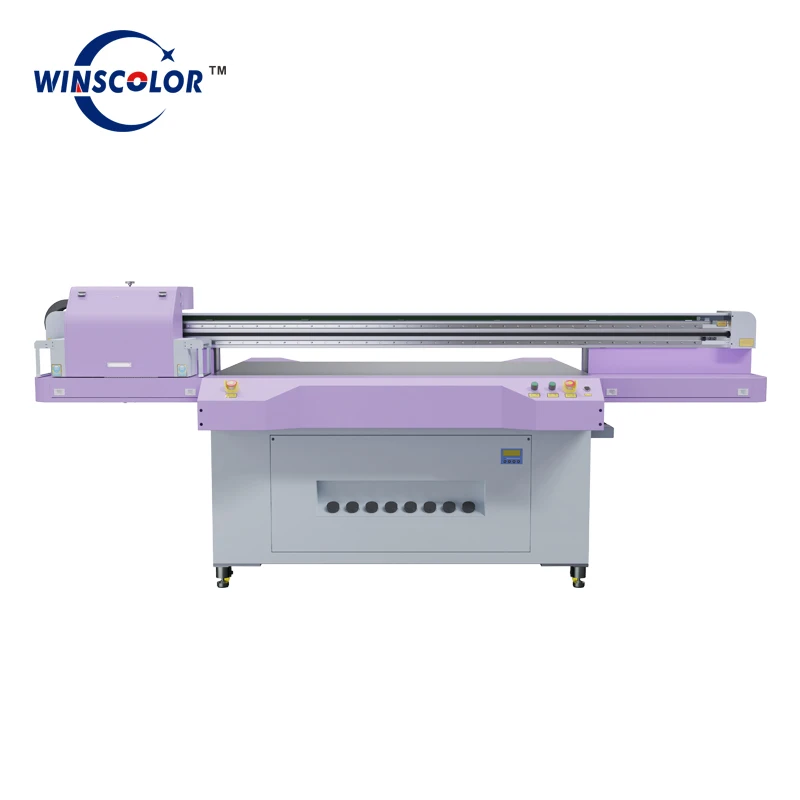

YC1610 UV Flatbed Printer①UV LED Lamp ②Anti-static, Anti-crash ③TAIWAN HIWIN guide rail④Industrial Printhead ⑤Universal Wheel ⑥Ink level alarm system⑦Switch and power switch area Product Paramenters
| Specifications | ||||||||
| Product Model | YC1610 | |||||||
| Printhead Type | DX5/DX7/DX10/TX800/XP600/I3200 | |||||||
| Printhead Number | 2-4 heads | |||||||
| Ink Characteristics | UV Curing Ink (VOA Free) | |||||||
| Ink reservoirs | Refillable on the fly while printing/1000ml per color | |||||||
| LED UV Lamp | more than 30000-hours life | |||||||
| Printhead arrangement | CMYKW V Optional | |||||||
| Printhead Cleaning System | Automatic Cleaning System | |||||||
| Guide Rail | Taiwan HIWIN | |||||||
| Working Table | Vacuum Sucking | |||||||
| Printing Size | 1600*1000mm | |||||||
| Print Interface | USB2.0/USB3.0/Ethernet Interface | |||||||
| Media Thickness | 0-100mm | |||||||
| Print Resolution& Speed | 720X720dpi | 4PASS | 4-16sqm/h | |||||
| 720X1080dpi | 6PASS | 3-11sqm/h | ||||||
| 720X1440dpi | 8PASS | 2-8sqm/h | ||||||
| Life of printed image | 3 years(outdoor),10years(indoor) | |||||||
| File Format | TIFF,JPEG,Postscript,EPS,PDF etc. | |||||||
| RIP Software | Photoprint / Rip print | |||||||
| Power Supply | 220V 50/60Hz(10%) | |||||||
| Power | 3100W | |||||||
| Operation Environment | Temperature 20 to 30 ℃,Humidity 40% to 60% | |||||||
| Warranty | 12 months exclude the consumables | |||||||
| Above specification subject to change without notice beforehand | ||||||||

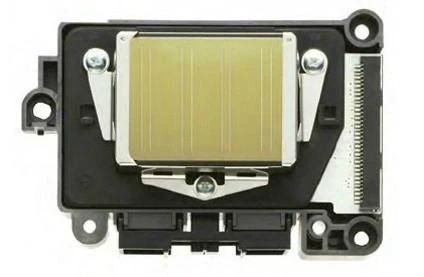

Japanese Print HeadEquiped with Japanese DX5/DX7/XP600/TX800/I3200 heads with 180 nozzles 6 or 8 channels, which provides a high precision printing.
High Precision Mute Linear Guide RailAdopting HIWIN mute double linear guide rail which is high resolution, low noise and durable, to ensu-re the carriage moving smoothly, inks eject more stably.
High Mute Drag ChainUtilize high mute drag chain on X axis, ideal for protection of cable and tubes under high speed moti-on. With high performance, low noise, make the working environment more comfortable.

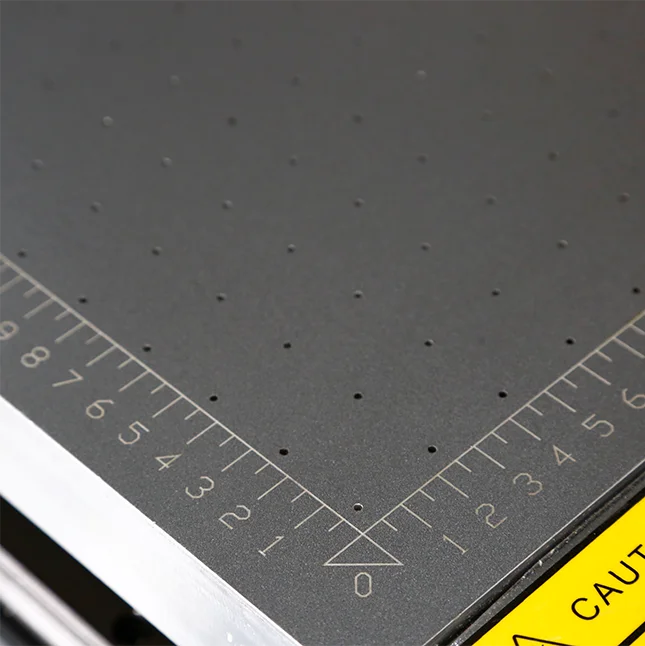

Sectional Vacuum Suction PlatformSectional vacuum suction platform, easily choose the vacuuming sections, good for various sizes of personalized printing; With full cover for bleeding printing, it will improve the utilization of materials.
Taiwan HIWIN Screw RodAdopting dual-level precision screw rod and imported Panasonic servo synchronous motors, ensure the screws rod on the both sides of Y axis synchronous running.

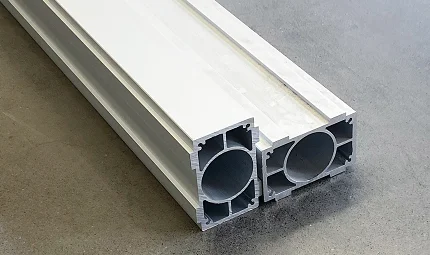

High Precision Aluminum BeamEquipped with self-researched cold drawn and high-strength aluminum beam, applied ultra strength aerial aluminum material, it ensures printing precision and stability, guarantee the perfect output.
Large capacity ink tank and ink shortage alarm system.
Leadshine servo Motor
Korea UV LED Lamp
Water-cooling Machine
Universal Holler
Printhead Anti-collision
Adopt Japanese piezoelectric nozzle, the accuracy can reach 2160 dpi, the new variable ink drop techno-logy, provide 3/3.5 pl ink dot size, can achieve high speed or low resolution cases can also easily achieve high quality picture, to achieve no point printing effect.

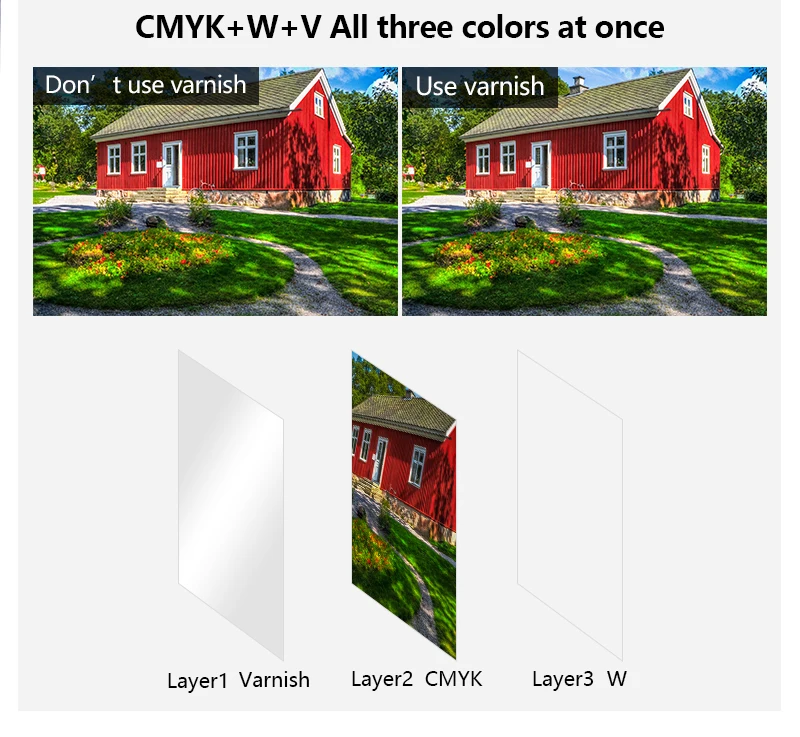

The use of gloss oil makes the product more gorgeous gloss and "high gloss" effect, not only makes the surface of the whole picture has a gloss sense, get a more exquisite printing effect, but also can better protect the coating, make the product more durable. Printing Samples
Photo Case
Decoration
Mouse Pad
Wood
Plastic
Advertising Sign
Acrylic
Wall Background
Glass Photo
Ceramic
Fiber
Handicraft Company Profile

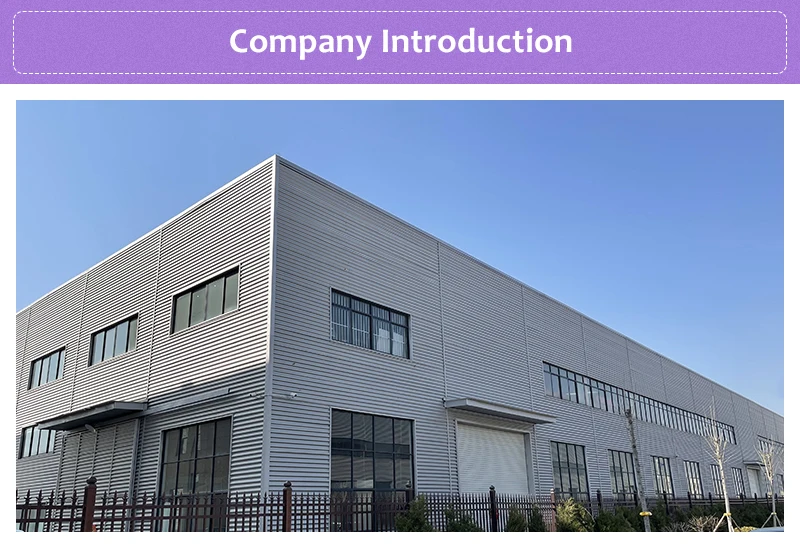

Jinan Yingcai Digital Technology Co., LtdJinan Yingcai Digital Technology Co., Ltd ( short as”Winscolor”) was established in 2015, locating in Jinan City, Shandongprovince, China. The independent plant covers more than 20,000 square meters, with six professional production lines to supportannually sales volume.Winscolor is an exporter of UV digital printing machines . Now our printer series include UV Flatbed printer, UV Flatbed with Roll to roll printer, and UV Hybrid printer, as well as smart UV printer.Winscolor digital printingmachine was exported since 2015, with widespread praise and recognition by our customers, our printers are welcome more than 150 countries in Asia, Europe, Australia and Africa etc.
Winscolor UV printers have been widely used in advertisement, sign,decoration, glass, crafts and other industries. We strengthen technological innovation, optimize the cost of consumption, andstrive to cr-eate the best quality UV digital printing machines for our customer, and some comprehensive solutio-ns according todifferent demands in various industries.
Winscolor uphold the concept of excellence, and continuously improve product quality, to become the most trusted brand in UV printing equipment industry. We will continue to committed to industrial prin-ting R & D and innovation and promote the healthy development of printing industry.
One Year Warranty
Important parts, warranty for one year.
Free Replacement
Within the warranty period free replacement of damaged parts caused by quality problems.
Intimate After-sales
At least three times a year after sales return visit, keep track of the machine use. Packing & Delivery
Customer Photos
FAQ 1.How long does the printing images will last outdoors and indoor?The printing images can last at least 3 years outdoors, and more than 10 years indoor.
2.What is the cost of ink for printing on the materials?
Normally it is around 0.5-1usd per square meter for ink cost.
3.How about the stability and quality of the printing images?
This UV flatbed printer can used to print on most of medias with best quality, durability, best result.
4.How about the maintance and after sales service?
Our engineer available service overseas, and we can provide remote control service and online service for customers. But costomer has to be responsible for the accommodation and transportation costs of the technical staff.
5.Are you a manufacturer or trade agent?
We are the manufacturer of UV flatbed printers.
6.Is there any guarantee for this printer?
Yes, we have guarantee for the printer. We provide 13 months warranty for all the electronic parts including the main board,driver board, control board, motor, etc, except the consumables, such as ink pump, printhead, ink filter, and slide block etc.
7.How can I install and start to use the printer?
Normally we will arrange technican for installation and training in your factory. or you can read the users' manual to understand the machine. If you need any help, our technician can help you via Teamviewer. Whenever you have questions to the machine, you can contact our technician or me directly.
8.Can I get supplies and wearing parts from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.
9.How will you achieve the warranty?
If any electronics or a mechanical part is confirmed to be broken, Ntek should send the new part within 48hours by express like TNT, DHL, FEDEX .etc to the buyer. And the shipping cost should be born by the buyer.
10.What kinds of materials need premier before printing?
Glass, ceramic, metel, acrylic, marble etc
