Product Description

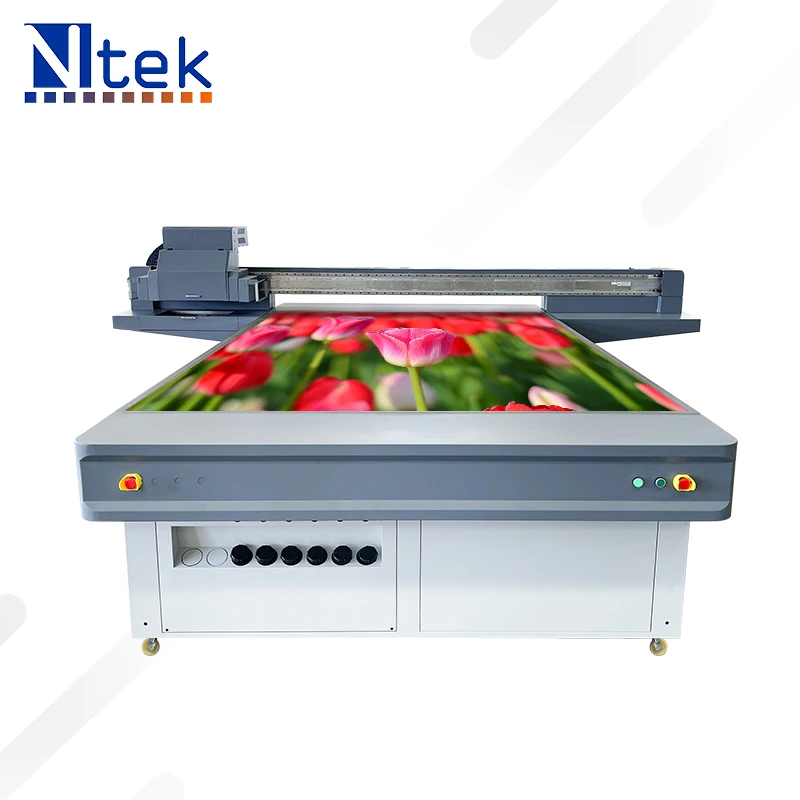

Uv printer printing glass ceramic tile flatbed printer 2030 L digital canvas printing machine Flatbed printer yc2030l can widely print on glass, ceramic tile, PVC, aluminum sheet, wood MDF board, metal panel, billboard, acrylic panel, paper board, foam board, corrugated cardboard, leather, flex banner, canvas, mesh paper, sticker, wall coverings, etc.
Printhead
Ricoh Gen5/Gen6/KM1024I/SPT1024GS printhead 2-16 units
Print Effect
Color, white, varnish and 3Dembossing effect optional
Printing Areas
Glass/Ceramic/Decoration/Advertising&Sign industry Product Specification| Product Name & Model | Ntek 2030L large format flat uv printer uv glass print machine digital | ||||||
| Printhead Type | RICOH GEN5/ RICOH GEN6/ KONICA 1024I/ SEIKO 1024GS | ||||||
| Printhead Number | 2-16 heads | ||||||
| Ink Characteristics | UV Curing Ink (VOC Free ) | ||||||
| Ink Reservoirs | Refillable on the fly while printing/2500ml per color | ||||||
| LED UV Lamp | More than 30000-hours life | ||||||
| Printhead Arrangement | C M Y K LC LM W varnish optional | ||||||
| Printhead Cleaning System | Automatic Cleaning System | ||||||
| Guide Rail | TAIWAN HIWIN/ THK optional | ||||||
| Working Table | Vacuum Sucking | ||||||
| Printing Size | 2000*3000mm | ||||||
| Print Interface | USB2.0/ USB3.0/ Ethernet Interface | ||||||
| Media Thickness | 0-100mm, higher can be customized | ||||||
| Printing Resolution& Speed | 360*900dpi | 4pass | 15-33sqm/h | GEN6 head speed 40% faster than GEN5 head | |||
| Printing Resolution& Speed | 720*900dpi | 6pass | 10-22sqm/h | ||||
| 720*1200dpi | 8pass | 8-18sqm/h | |||||
| Life of Printed Image | 3 years (outdoor),10years (indoor) | ||||||
| File Format | TIFF, JPEG, Postscript, EPS, PDF etc. | ||||||
| RIP Software | RipPrint/ Photoprint | ||||||
| Power Supply | 220V 50/ 60Hz (10%) | ||||||
| Power | 3100W | ||||||
| Operation Environment | Temperature 20 to 30℃,Humidity40% to 60% | ||||||
| Machine Dimension | 4.03*4.07*1.5m | ||||||
| Packing Dimension | 4.31*0.8*1.14m 4.3*2.26*1.27m | ||||||
| Weight | 1800kg | ||||||
| Warranty | 12 months exclude the consumables like printhead | ||||||
2030 Uv printer varnish

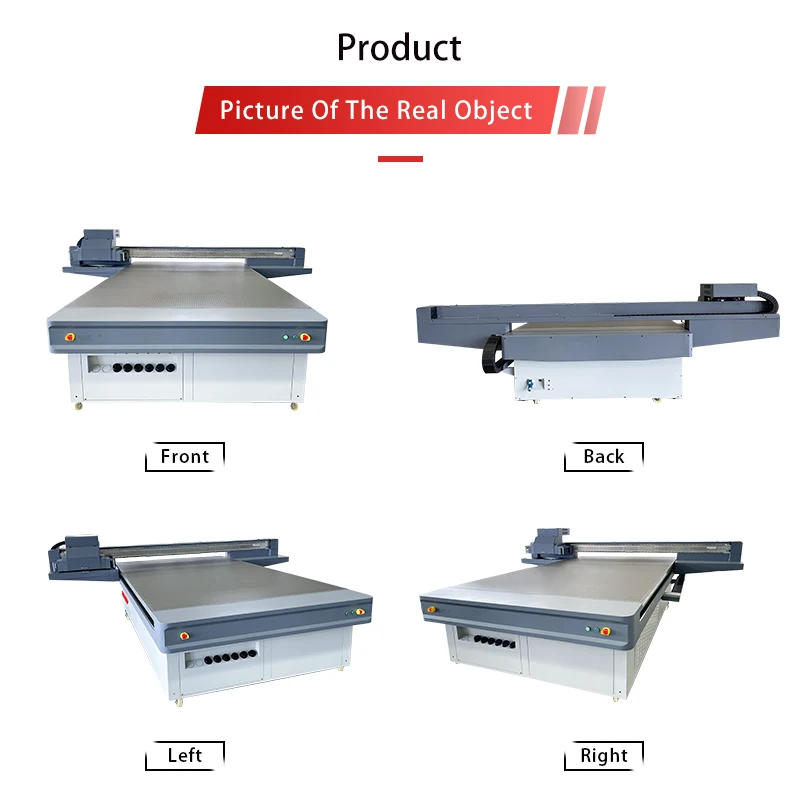

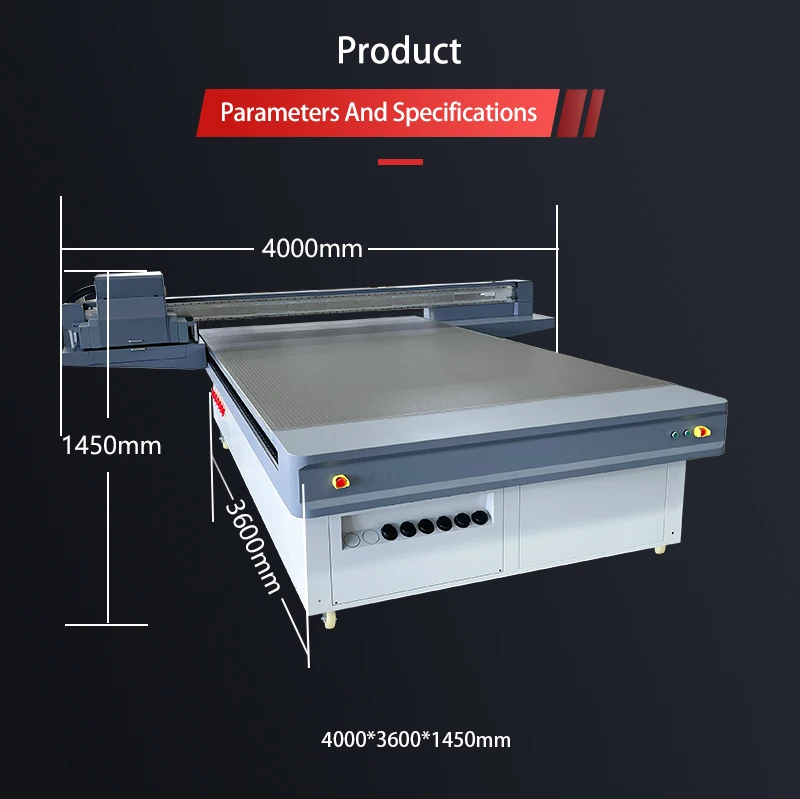

2030 Flatbed UV Printer-Machine Size : 4.03*4.07*1.5m

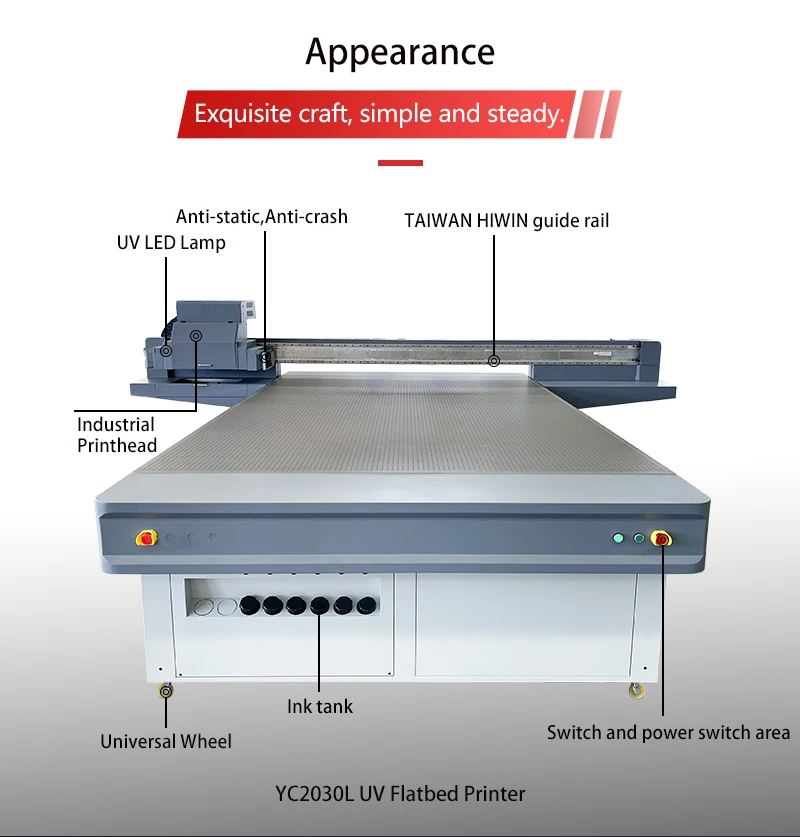

2030L UV Printing Machine-Each Side Printer details
1. Ricoh G5/G6 Print Head
Varnish printer opt gray level Ricoh Gen5/Ricoh Gen 6 stainless steel internal heatingindustry head, with high performance in speed
and resolution, suit for long-time working,
24 hours running.
2. High Mute Drag Chain
Our 2513 digital printing machine utilize high mutedrag chain on X-axis, ideal for protection of
cable and tubes under high speed motion. With
high performance, low noise, make the working
environment more comfortable.
3. Hard Anodized Vacuuming Platform
Our 2513 flatbed printer apply the hard anodized vacuum suction platform, which can preventscratches by rigid materials, avoid damaging
the platform by rigid materials.

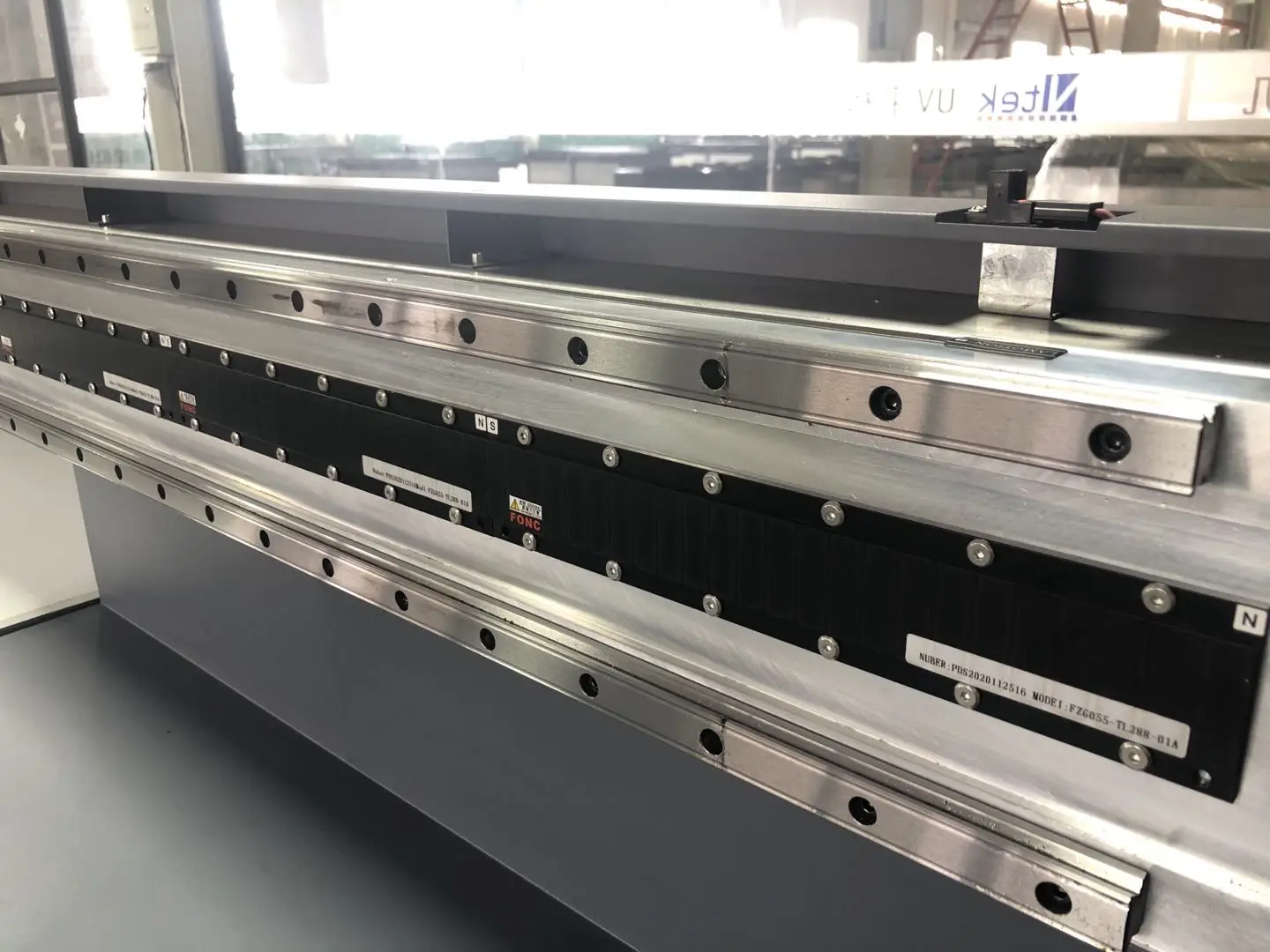

4. Taiwan HIWIN Guide Rail
Our 2513 flatbed priner adopt double guide rail on Y-axis, compared with belt one, it's not easy to loose, printer movement more stable, ensure the printing resolution

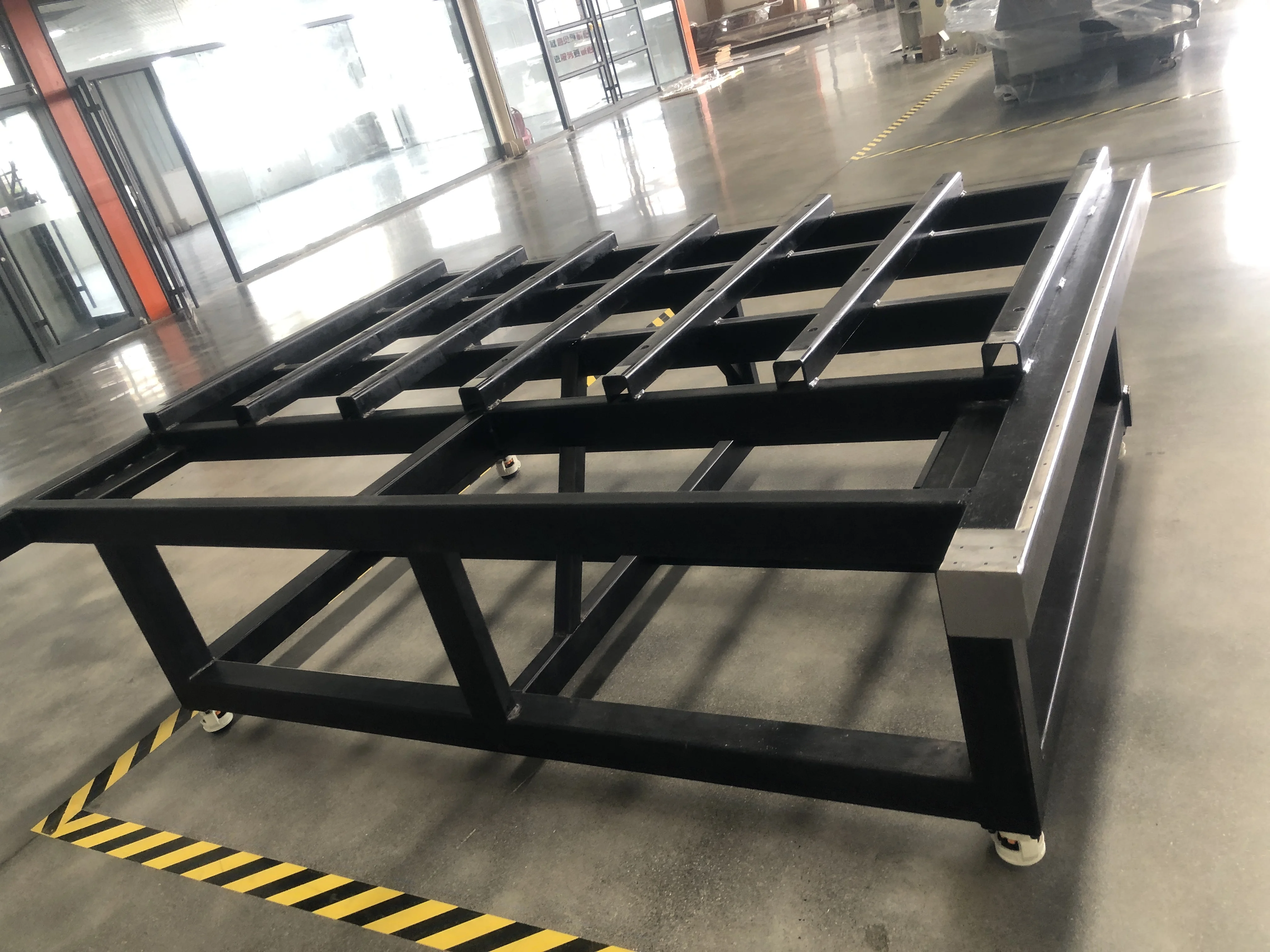

5. All Steel Frame Structure
Our 2513 inkjet printer body structure is welded with 8cm*16cm square steel, millbed by big gantrymilling machine, and heated by temering oven,
will not easy to deform.
6. High Quality Motor
Leadshine and Panasonic motor optional, withone year quality assurance. Adopt big power,
which can endure our flatbed printer long time
work and not burn out.
Ink Tank
Secondary Ink Cartridge
Temperature Control System
Universal Wheel
Printhead Anti-Colision
Imported UV LED Lamp
Registration Pin
Anti-Static Device
Automatic Height Measurement
Printing Samples
CMYK LC LM White Varnish optionalAdopt Ricoh piezoelectric nozzle, one nozzle 384/1280 nozzles, the accuracy can reach 1440dpi, the new variable inkdrop technology, provide 7/14/21pl ink droplet, achieve high speed and high printing resolution
Phone Case
Decorative Painting3d effect
Wood Panel
Plastic
Embossing effect
Acrylic
Ceramic Tile
Glass
Company Profile
Linyi Win-Win Machinery Co., LtdLinyi Win-Win Machinery Co.,Ltd is founded in 2009 in Shandong, China, is a high-tech machinery manufacturer, integrated with the R&D, production, sales and maintenance in a whole. We mainly manufacture large format UV printers and OEM service is available. We have 12 years experience in producing and exporting UV printers. The factory covers more than 20,000 square meters, with six professional production lines, mainly produce UV flatbed printer, UVflatbed and roll to roll printer and UV hybrid printer. With high quality, our printers are welcome more than 150 countries in Asia, Europe, Australia and Africa etc., and OEM service is available.
The UV printer can widely print on glass, ceramic tile, PVC ceiling, aluminum sheet, wood MDF board, metal panel, billboard, acrylic panel, paper board, foam board, PVC expansion board, corrugated cardboard, bamboo fiber board etc; and for flexible materials such as PVC, canvas, leather etc., and widely applied in decoration industry, glass industry, advertising&signs industry, leather, furniture and ceramic industry etc. All our printers arewith CE certificate.
Ntek UV Flatbed Printer-WarrantyWe provide one year warranty for our uv printers including all the electronic parts including the main board, driver board, control board, motor, etc, except the consumables, such as printhead, ink pump, ink filter, and slide block etc. Packing & Delivery
YC2030L UV Flatbed Printer-PackagingSeaworthy Packing: Inner packing with strech plastic film, outside packing with export plywood casePacking Size: 4030*4070*1350mm, Net Weight: About 1600kgs, Gross Weight: About 1800KGS Customer Photos
Ntek Printer Customer All Over the WorldNow our factory is looking for agents all over the world, if you are interested, welcome you to joint us FAQ 1. How long does the printing images will last outdoors and indoor?UV Hybrid printer printed images can last at least 3 years outdoors, and more than 10 years indoor.
2. What is the cost of ink for printing on the materials?
Normally it is around 0.5-1 USD per square meter for ink cost.
3. How about the stability and quality of the printing images?
This UV hybrid printer can used to print on most of medias with best quality, durability, best result.
4. How about the maintenance and after sales service?
Our engineer available service overseas, and we can provide remote control service and online service for customers. But customer
has to be responsible for the accommodation and transportation costs of the technical staff.
5. Are you a manufacturer or trade agent?
We are the manufacturer of UV flatbed printer and UV hybrid printer.
6. Is there any guarantee for this printer?
Yes, we have guarantee for the printer. We provide 13 months warranty for all the electronic parts including the main board,
driver board, control board, motor, etc, except the consumables, such as ink pump, print head, ink filter, and slide block etc.
7. How can I install and start to use the printer?
Normally we will arrange technician for installation and training in your factory. or you can read the users' manual to understand
the machine. If you need any help, our technician can help you via Team viewer. Whenever you have questions to the machine, you can
contact our technician or me directly.
8. Can I get supplies and wearing parts from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.
9. How will you achieve the warranty?
If any electronics or a mechanical part is confirmed to be broken, Ntek should send the new part within 48 hours by express like
TNT, DHL, FEDEX .etc to the buyer. And the shipping cost should be born by the buyer.
10. What kinds of materials need premier before printing?
Glass, ceramic, metal, acrylic, marble etc
