Product Description

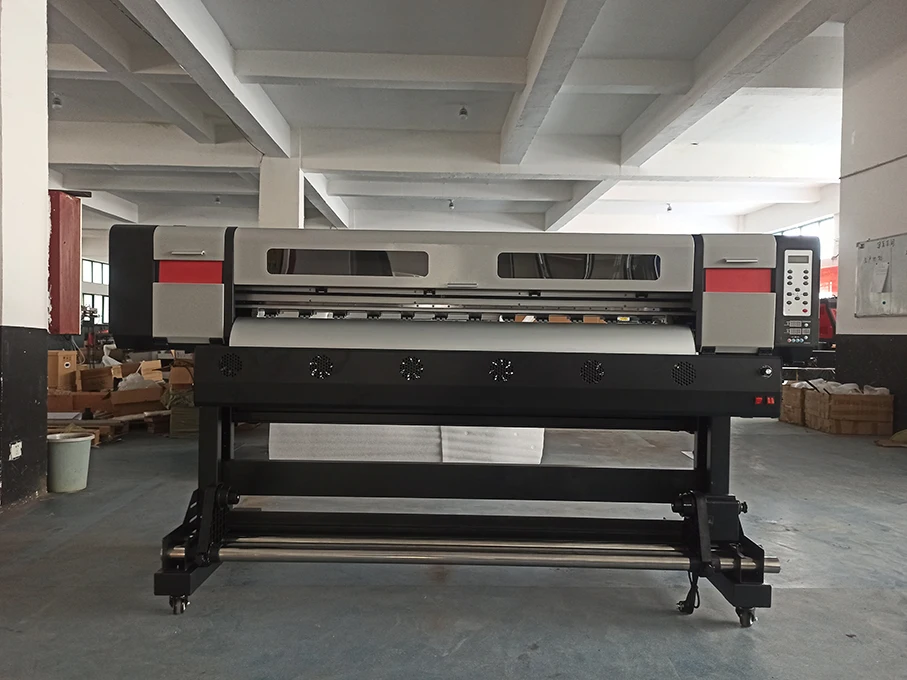

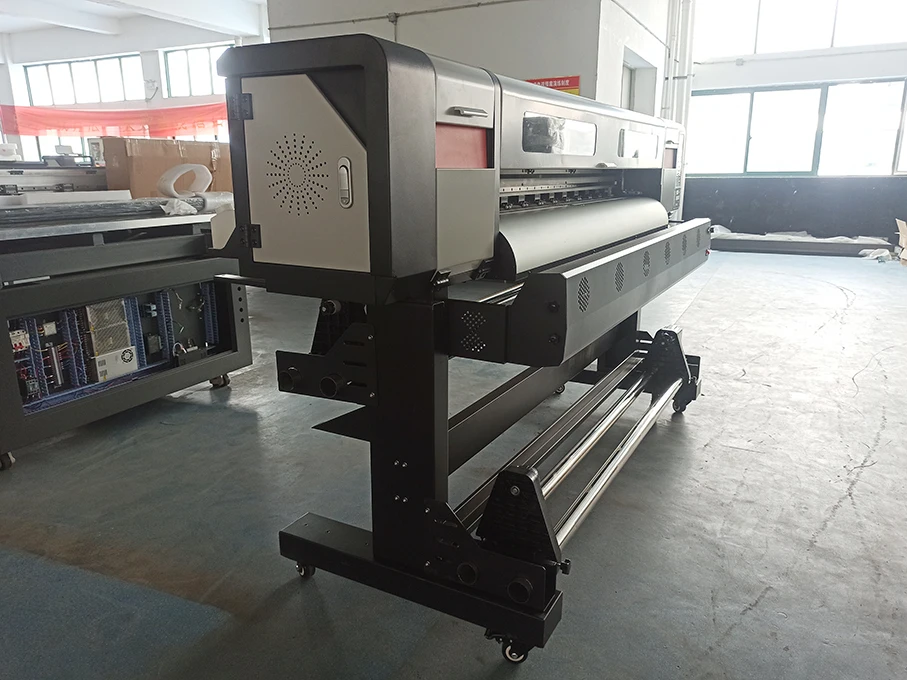

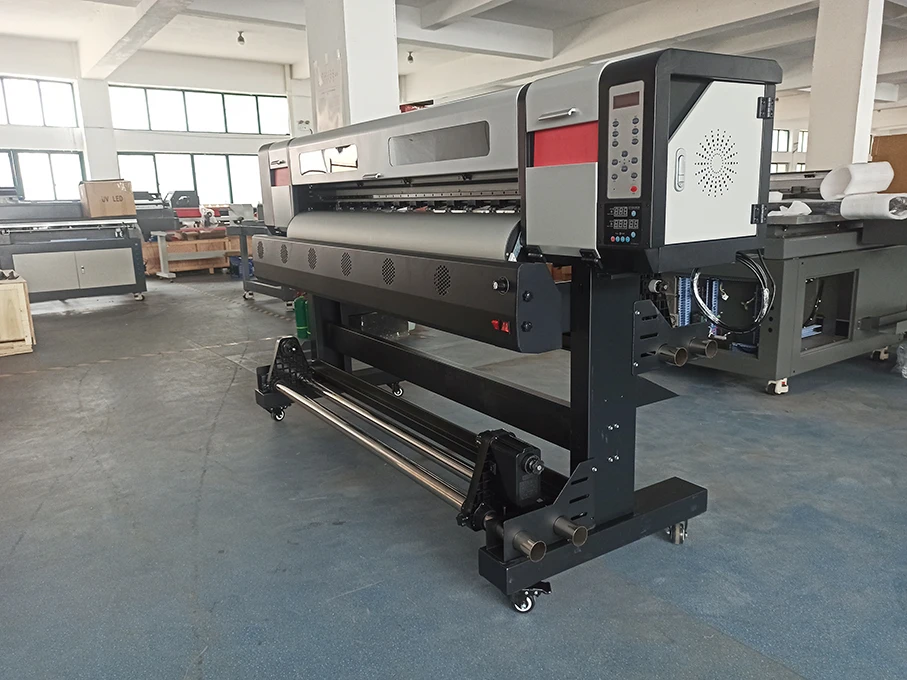

YDM Wide Format Banner Vinyl Sticker Canvas Tarpaulin Inkjet Eco Solvent Printer
YDM Wide Format Banner Vinyl Sticker Canvas Tarpaulin Inkjet Eco Solvent Printer can install 1 PCS XP600 printhead , CMYK color set . It has fashionable outlook, stable performance, wide application range and cost effective features. It's easy for you to install and starting printing with our guide&support .
Parameters | Technical Data | 1600 series | |
| Print Technology | ||
| Print Format | 1600 mm/ 5 ft | |
| Print Height | 3mm | |

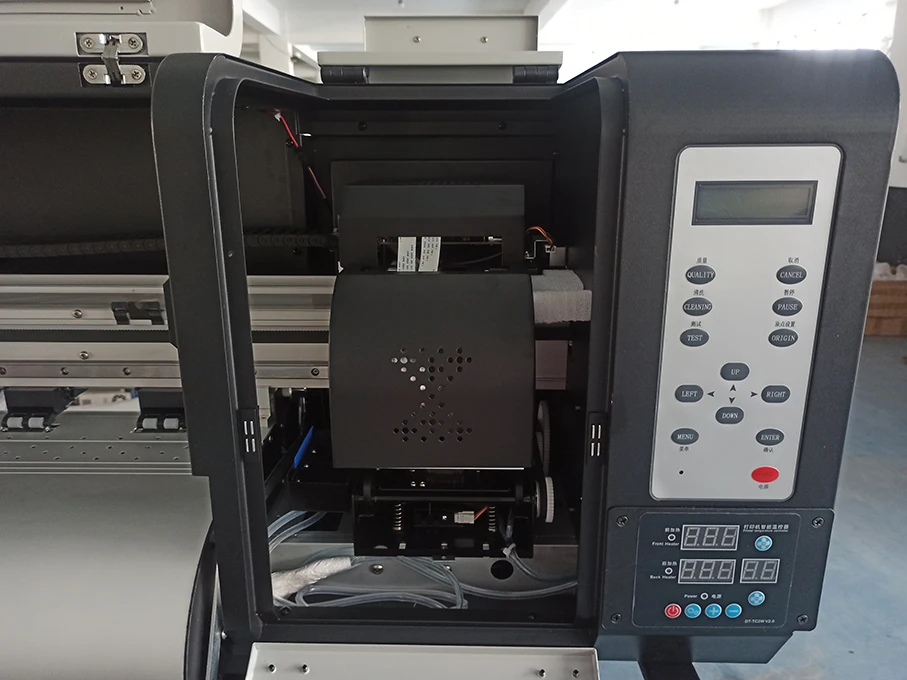

| Head Model | Epson F1080-A1(XP600) | |
| Color Set | CMYK | |
| Control System | Sunyang | |
| RIP Software | Maintop | |
| Print Direction | Uni/ Bi-directional | |
| Resolution | 8 PASS : 720 x 720 dpi 12 PASS : 720 x 1080 dpi 16 PASS : 720 x 1440 dpi | |
| Print Speed | Production mode: 7-10 sq.m/ h Quality mode: 5-7 sq.m/ h High resolution mode: 3-5 sq.m/ h | |
| Machine Highlight | ||
| Heavy Duty Frame | Strengthened beam | |
| Driving Mode | HIWIN linear rail + Servo motor + IGUS Drag chain | |

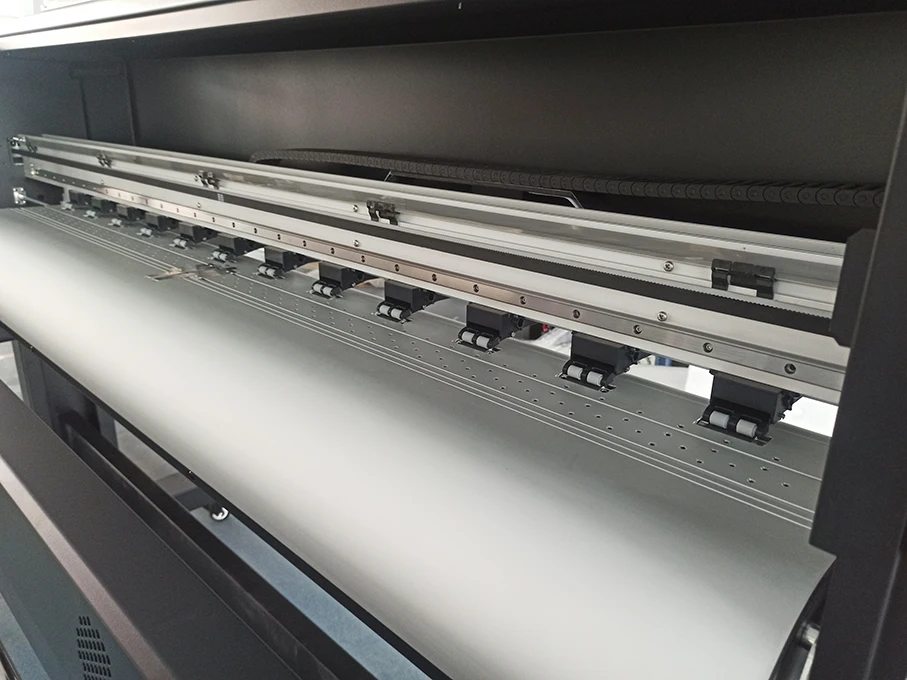

| Work Table | Pinch roller+Anodized aluminum table | |
| Ink type | Eco-solvent ink | |
| Ink System | Continuous ink supply | |
| Curing System | Intelligent front, middle and post infrared heating, with drying fan | |
| Others | ||
| Print Media | Coating paper/ PP/ PVC/ banner/Canvas/ Vinyl/ leather .. etc | |
| PC configuration | Win7/ Win10, 32/64 bit, CPU≥ i5, RAM ≥8GB, Space for Disk C≥100G | |
| Signal Transmission | Optical Fiber + USB 3.0 | |
| Color Control | Comply with ICC standards, With curve and density Adjustment function | |
| File Format | TIFF/ JPEG/ POSTSCRIPT3/ PDF | |
| Power Supply | AC220V,50/60HZ | |
| Working Power | 2 KW | |
| Noise | Standby < 32 dB ; Working < 65 dB | |
| Machine Size | 2650*750*1300 mm | |
| Gross Weight | 200 KG | |
Application
Company Profile

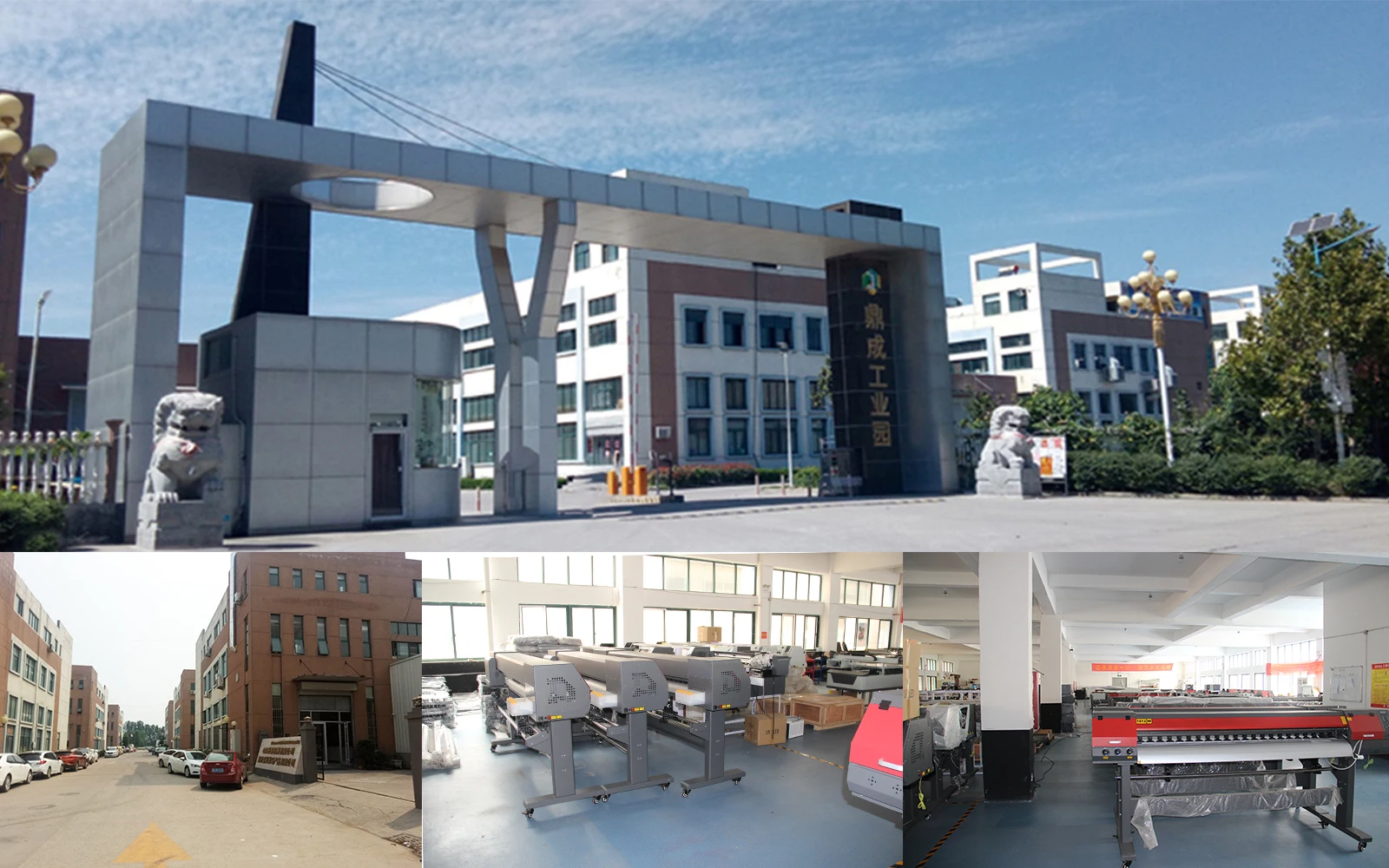

Factory&Warehouse show

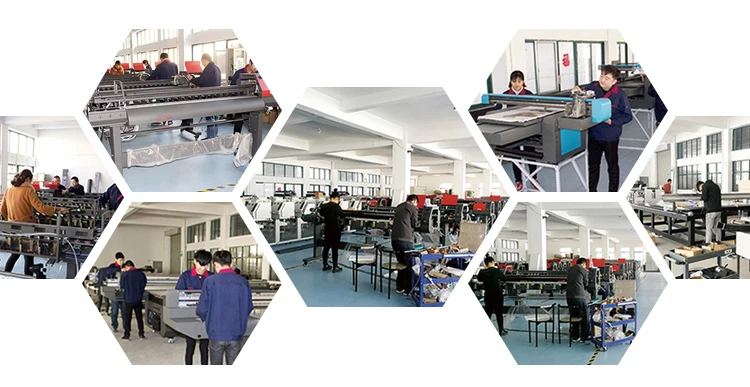

Production Display
Strategic Partners
Certificate
Exhibition
